(09-05[00]) - BRACKET ASSY - SWING, CANOPY

Запчасти Case CX47 (09-05[00]) - BRACKET ASSY - SWING, CANOPY (09) - CHASSIS/ATTACHMENTS

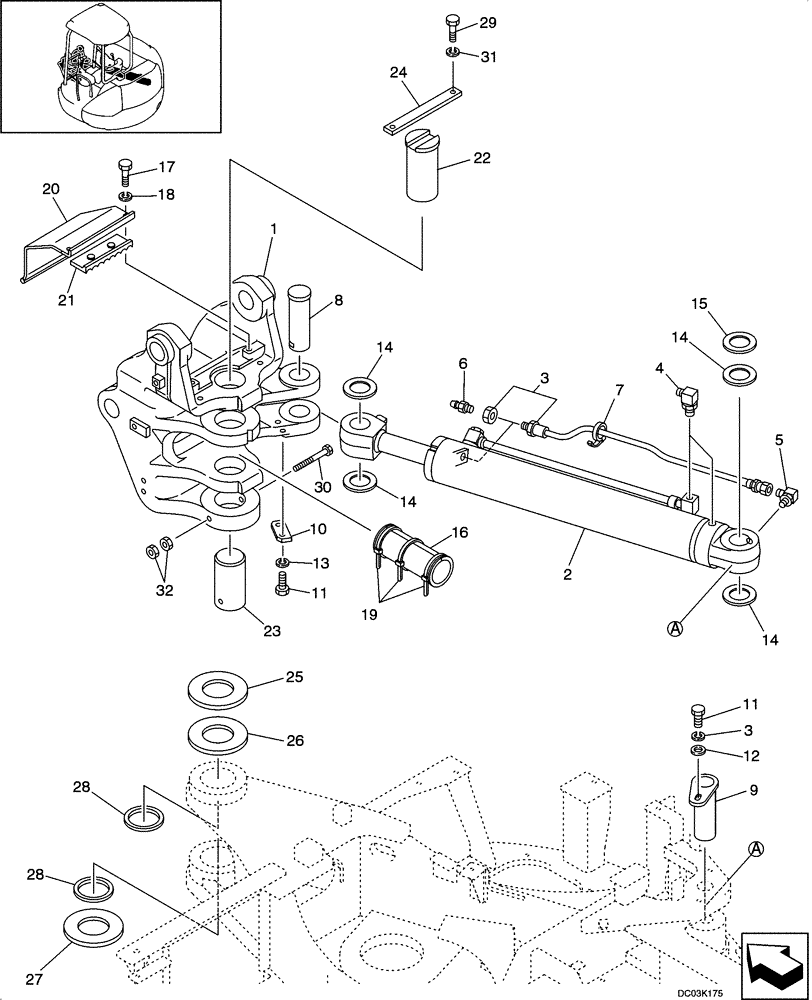

Схема запчастей Case CX47 - (09-05[00]) - BRACKET ASSY - SWING, CANOPY (09) - CHASSIS/ATTACHMENTS
10
3
29
31
24
32
11
19
8
16
20
30
1
3
23
13
14
4
14
26
14
5
11
9
6
2
22
7
15
18
17
28
12
28
27
25
21
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PY02B00057P1

BRACKET

Swing

1шт.

2

PH01V00017F3

CYLINDER ASSY.

Swing See Figure 08 -65

1шт.

3

PH42H01008D4

HOSE ASSY.

1шт.

4

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

2шт.

5

PV03H01004P1

90 ELBOW

1шт.

6

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

7

PY01P01043D2

CABLE TIE,4.60mm W x 202mm L

3шт.

8

PH02B01062P1

PIN

1шт.

9

PH02B01063P1

PIN,50mm OD x 157mm L

1шт.

10

PH02B01065P1

PLATE

1шт.

11

ZS18C12025

SCREW,Hex, M12 x 25mm

3шт.

12

2418T12345

WASHER

1шт.

13

ZW26X12000

LOCK WASHER

3шт.

14

PH02B01067P1

SHIM,0.5mm Thk

4шт.

15

2418T6856D3

SHIM

(0, 9)

1шт.

16

PH02B01072P1

GROMMET

1шт.

17

ZS18C12025

SCREW,Hex, M12 x 25mm

2шт.

18

ZW26X12000

LOCK WASHER

4шт.

19

PY01P01043D8

CABLE TIE,102mm L

3шт.

20

PH02B01092P1

COVER

1шт.

21

PH02B01098P1

RUBBER

1шт.

22

PH02B01047P1

PIN

1шт.

23

PH02B01048P1

PIN,80mm OD x 142mm L

1шт.

24

PH02B01049P1

PLATE

1шт.

25

PH02B01050P1

WASHER

1шт.

26

PH02B01051P1

WASHER

1шт.

27

PH02B01066P1

SHIM,0.5mm Thk

1шт.

28

2445R138D7

SEAL,80mm ID x 95mm OD x 4mm Thk

2шт.

29

ZS18C12025

SCREW,Hex, M12 x 25mm

2шт.

30

HS18C12170G1

SCREW

1шт.

31

ZW26X12000

LOCK WASHER

2шт.

32

ZN18C12010

NUT

2шт.
