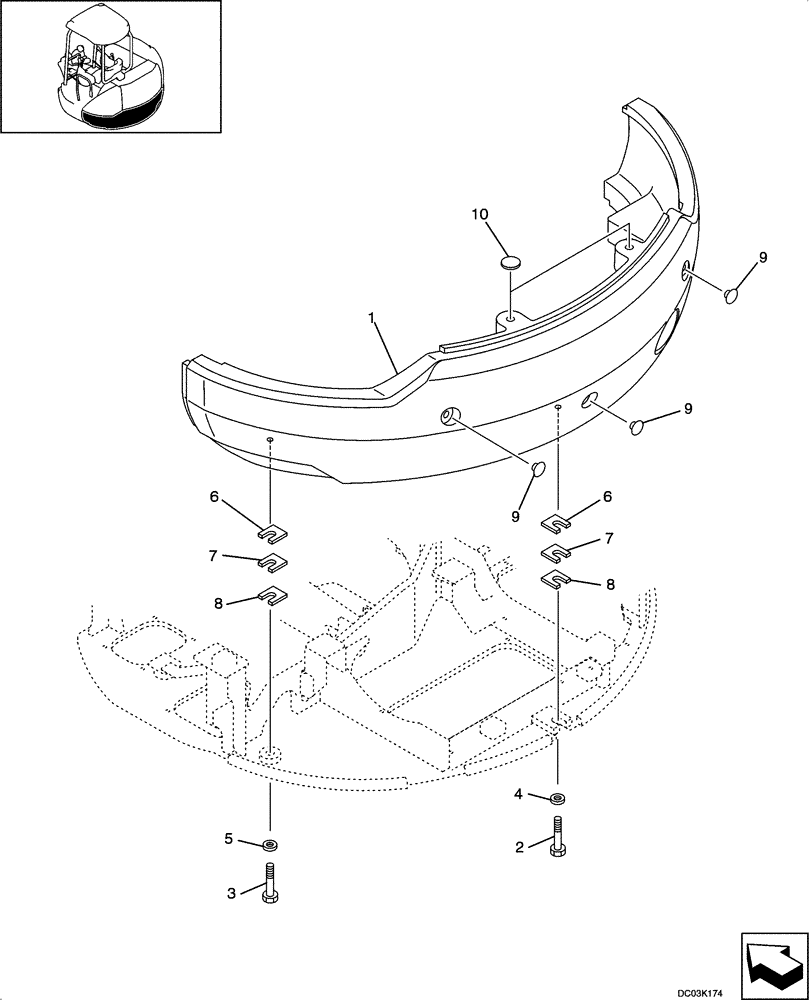

Запчасти Case CX47 (09-04[00]) - COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

PY60C00008P1

COUNTERWEIGHT

1шт.

2

ZS18C16050

SCREW,Hex, M16 x 50mm

1шт.

3

ZS18C16045

SCREW,Hex, M16 x 45mm

2шт.

4

PH60C01001P1

WASHER

1шт.

5

ZW16H16000

WASHER

2шт.

6

PM60C01022D1

SHIM

(1, 2)

3шт.

7

PM60C01022D2

SHIM,2.0mm Thk

3шт.

8

PM60C01022D3

SHIM

(3, 2)

3шт.

9

YT60C01007P1

PLUG

3шт.

10

LE60C01028P1

PLATE

2шт.
