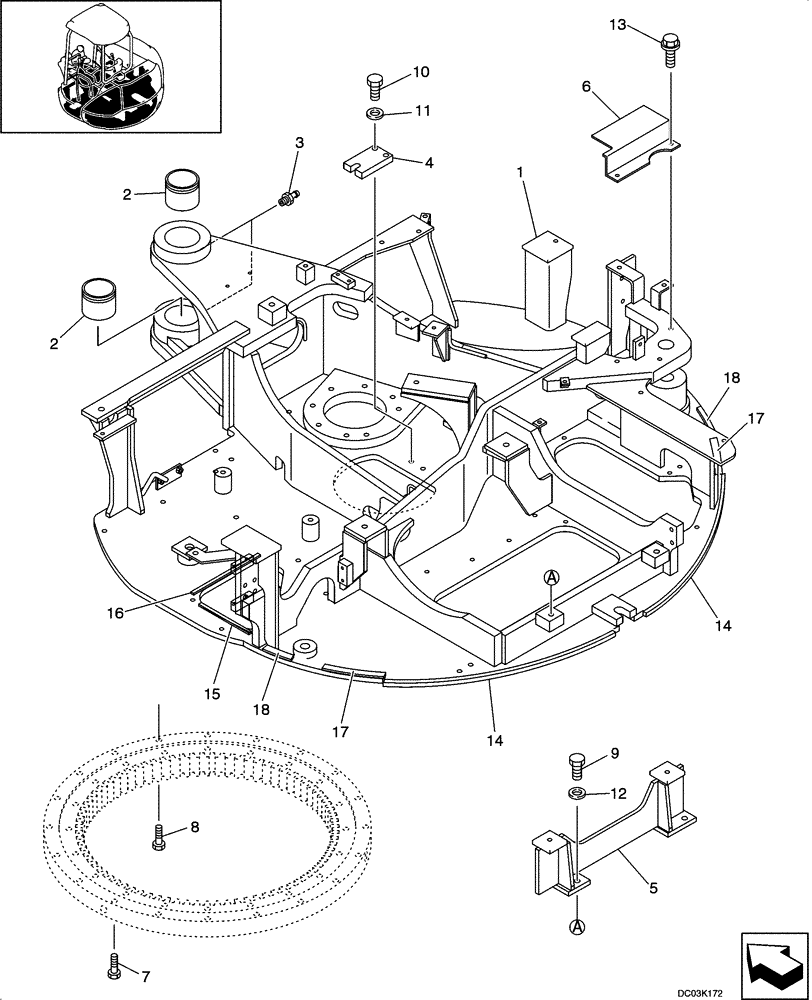

Запчасти Case CX47 (09-02[00]) - TURNTABLE (09) - CHASSIS/ATTACHMENTS

1

PY52F00035P1

TURNTABLE

1шт.

2

PH52F01139P1

BUSHING,80mm ID x 95mm OD x 68mm L

2шт.

3

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

2шт.

4

PH52F01157P1

PLATE

1шт.

5

PY52F01094P1

BRACKET

1шт.

6

PH52F01154P1

COVER

1шт.

7

ZS18C14070

SCREW,Hex, M14 x 70mm

19шт.

8

HS18C14070G2

SCREW

1шт.

9

ZS18C16050

SCREW,Hex, M16 x 50mm

2шт.

10

ZS18C12040

SCREW,Hex, M12 x 40mm

2шт.

11

ZW16X12000

WASHER

2шт.

12

ZW16H16000

WASHER

2шт.

13

ZM22C10020

BOLT

2шт.

14

YR21C01135D6

RUBBER

2шт.

15

PH52F01160D1

RUBBER

1шт.

16

PH52F01160D2

RUBBER

1шт.

17

YJ21C01143D9

RUBBER

2шт.

18

YJ21C01143D2

RUBBER

2шт.
