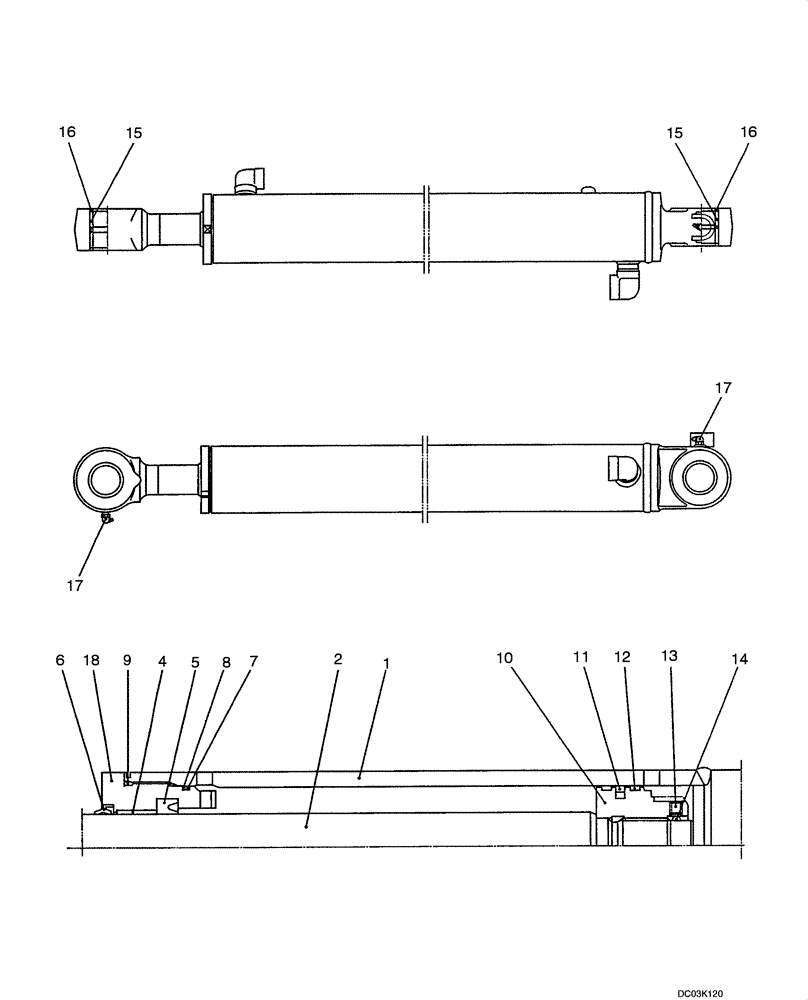

Запчасти Case CX47 (08-62[00]) - CYLINDER ASSY, ARM (08) - HYDRAULICS

PY01V00034F2

CYLINDER ASSY.

Arm Incl. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

4

PH01V00014S004

BUSHING

1шт.

5

2438U345S15

RING

1шт.

6

PH01V00011S006

GASKET

1шт.

7

ZD12G08500

O-RING,84.40mm ID x 90.60mm OD x 3.10mm

1шт.

8

PH01V00014S008

BACK-UP RING

1шт.

9

ZD11G09000

O-RING,89.40mm ID x 95.60mm OD x 3.10mm

1шт.

10

PH01V00014S015

PISTON

1шт.

11

2438U715S24

RING

1шт.

12

PH01V00014S017

RING

2шт.

13

2438U1057S16

SET SCREW

1шт.

14

2436U946S11

BALL

1шт.

15

PW01V01086D3

BUSHING

2шт.

16

2438U1163S25

SEAL

4шт.

17

ZG91U02000

LUBE NIPPLE

2шт.

18

PY01V00034S018

CYLINDER HEAD

1шт.

PY01V00034R100

REPAIR KIT

Incl. 1, 15

1шт.

PY01V00034R200

REPAIR KIT

Incl. 2, 15

1шт.

PY01V00034R300

REPAIR KIT

Incl. 5 - 9, 11, 12

1шт.
