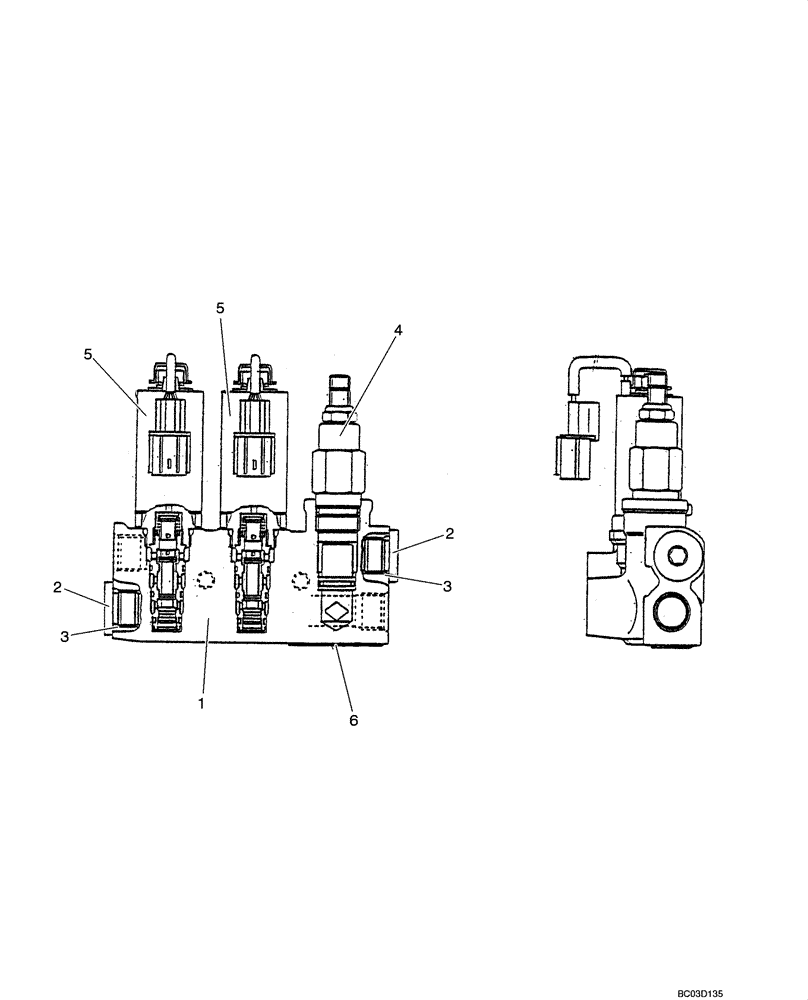

Запчасти Case CX47 (08-53[00]) - VALVE ASSY - SOLENOID, (PH35V00001F2) (08) - HYDRAULICS

PH35V00001F2

VALVE

Swing, Incl. 1 - 6

1шт.

1

PH35V00001S101

CASE

1шт.

2

YN30V00001S156

PLUG

2шт.

3

ZD12P01400

O-RING

2шт.

4

PH22V00001F1

VALVE PRESSURE RELIE

See Figure 08 -55

1шт.

5

PH35V00002F2

SOLENOID VALVE

See Figure 08 -54

2шт.

6

PH35V00001S901

LABEL

1шт.
