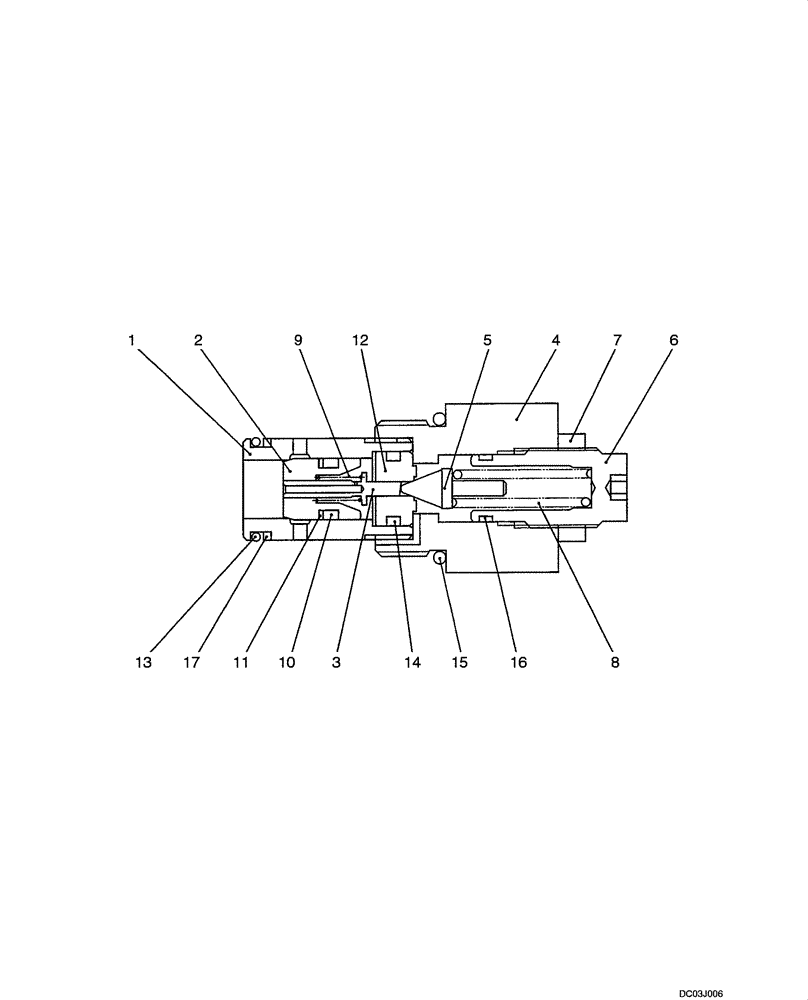

Запчасти Case CX47 (08-47[00]) - VALVE ASSY - PRESSURE RELIEF (PH22V00008F1) (08) - HYDRAULICS

PH22V00008F1

VALVE

PRESSURE RELIEF Incl. 1 - 17

1шт.

PH22V00008F2

VALVE PRESSURE RELIE

Incl. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

Socket

1шт.

2

NSS

NOT SOLD SEPARAT

Plunger

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

4

NSS

NOT SOLD SEPARAT

Plug

1шт.

5

NSS

NOT SOLD SEPARAT

Poppet

1шт.

6

NSS

NOT SOLD SEPARAT

Screw, Adjusting

1шт.

7

NSS

NOT SOLD SEPARAT

Nut

1шт.

8

NSS

NOT SOLD SEPARAT

Spring

1шт.

9

NSS

NOT SOLD SEPARAT

Spring

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Back Up

1шт.

12

NSS

NOT SOLD SEPARAT

Seat, Valve

1шт.

13

ZD12P01500

O-RING

1шт.

14

ZD12P01000

O-RING

1шт.

15

ZD12P02200

O-RING

1шт.

16

2436R612S13

O-RING

1шт.

17

2436R715S23

BACK-UP RING

1шт.

PH22V00008F1

VALVE

Set Pressure 22, 6MPa at 42L/min

1шт.

PH22V00008F2

VALVE PRESSURE RELIE

Set Pressure 22, 6MPa at 52, 4L/min

1шт.
