(08-46[00]) - VALVE ASSY - PRESSURE RELIEF (PH22V00003F1)

Запчасти Case CX47 (08-46[00]) - VALVE ASSY - PRESSURE RELIEF (PH22V00003F1) (08) - HYDRAULICS

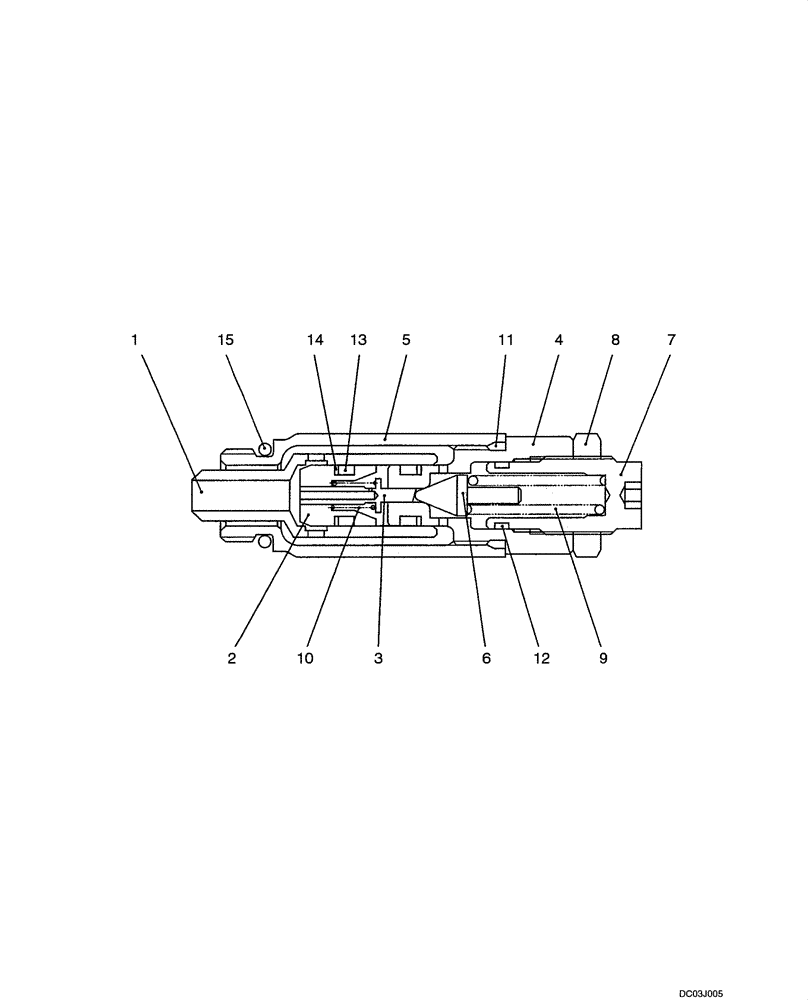

Схема запчастей Case CX47 - (08-46[00]) - VALVE ASSY - PRESSURE RELIEF (PH22V00003F1) (08) - HYDRAULICS
15
8
3
12
11
10
6
9
2
13
5
4
1
14
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PH22V00003F1

VALVE PRESSURE RELIE

Incl. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

Socket

1шт.

2

NSS

NOT SOLD SEPARAT

Valve

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

NSS

NOT SOLD SEPARAT

Body

1шт.

6

NSS

NOT SOLD SEPARAT

Poppet

1шт.

7

NSS

NOT SOLD SEPARAT

Screw, Adjusting

1шт.

8

NSS

NOT SOLD SEPARAT

Nut

1шт.

9

NSS

NOT SOLD SEPARAT

Spring

1шт.

10

NSS

NOT SOLD SEPARAT

Spring

1шт.

11

ZD12P01500

O-RING

1шт.

12

2436R612S13

O-RING

1шт.

13

PH22V00003S013

O-RING

2шт.

14

PH22V00003S014

BACK-UP RING

2шт.

15

ZD12P01400

O-RING

1шт.

PH22V00003F1

VALVE PRESSURE RELIE

Set Pressure 19, 6MPa at 36, 8L/min

1шт.

PH22V00003F2

VALVE, PRESSURE RELI

EF Set Pressure 19, 6MPa at 40, 3L/min

1шт.

PH22V00003F3

VALVE PRESSURE RELIE

Set Pressure 19, 6MPa at 47, 1L/min

1шт.
