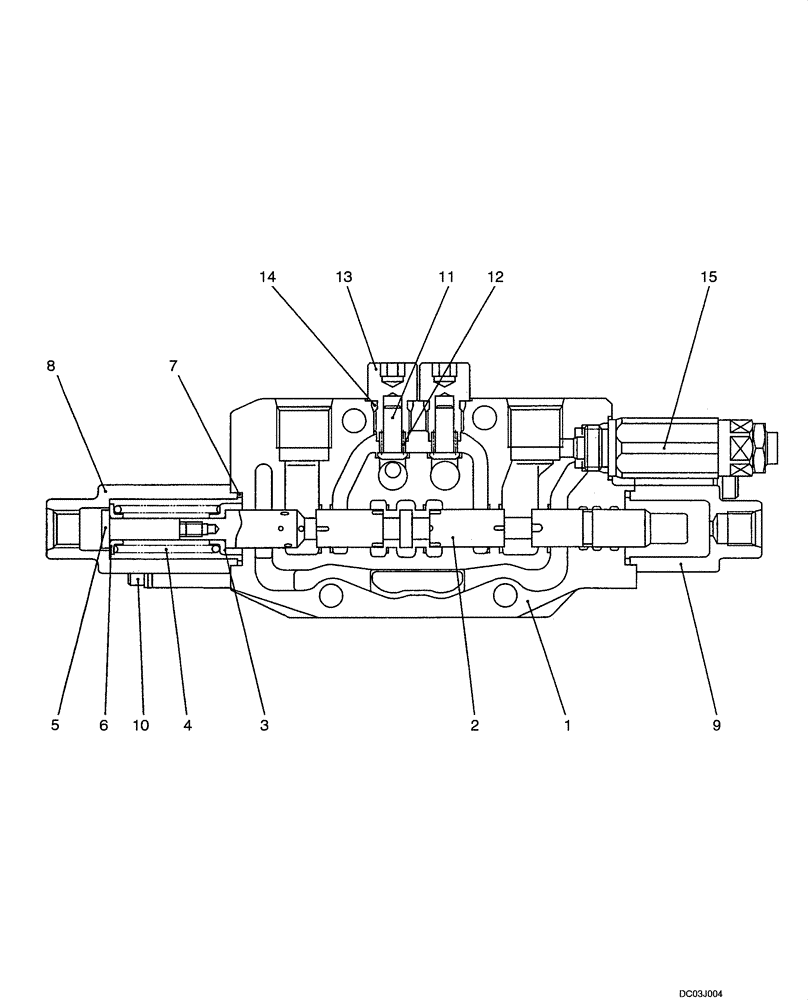

Запчасти Case CX47 (08-45[00]) - VALVE ASSY - BUCKET (08) - HYDRAULICS

PH30V00030F1

CONTROL VALVE

Bucket Incl 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Bolt, Spacer

1шт.

6

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

7

PH30V00009S007

O-RING

2шт.

8

PH30V00009S008

COVER

1шт.

9

PH30V00009S011

COVER

1шт.

10

PH30V00009S019

CAPSCREW

4шт.

11

PH30V00003S006

POPPET

2шт.

12

PH30V00003S007

SPRING

2шт.

13

PH30V00009S015

PLUG

2шт.

14

ZD12P01100

O-RING

2шт.

15

PM22V00005F3

VALVE PRESSURE RELIE

See Figure 08 -48

1шт.

PH30V00030R100

REPAIR KIT

Incl. 2 - 6

1шт.
