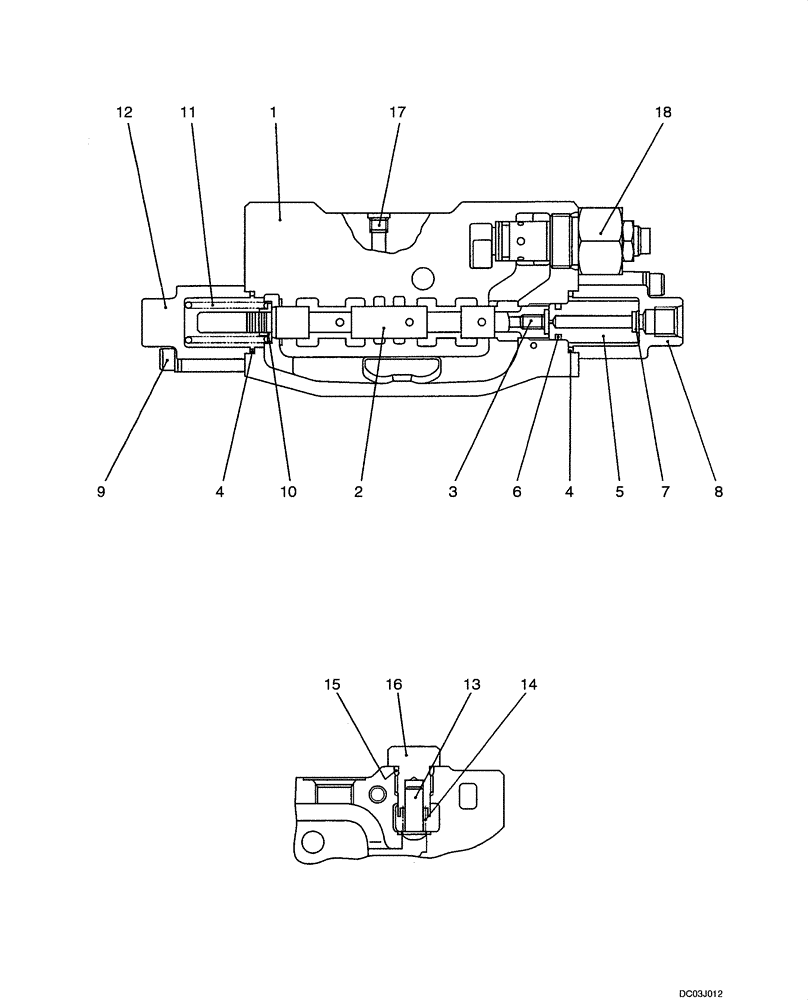

Запчасти Case CX47 (08-43[00]) - VALVE ASSY - STRAIGHT TRAVEL (08) - HYDRAULICS

PY30V00018F1

VALVE

Incl. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

NSS

NOT SOLD SEPARAT

Plug

1шт.

4

PH30V00009S007

O-RING

2шт.

5

PH30V00015S005

FILTER COVER

1шт.

6

ZD12P01200

O-RING

1шт.

7

EW30V00001S068

FILTER

1шт.

8

PH30V00009S011

COVER

1шт.

9

PH30V00009S019

CAPSCREW

4шт.

10

PH30V00009S006

SPRING SEAT

1шт.

11

PH30V00009S004

SPRING

1шт.

12

PH30V00015S013

COVER

1шт.

13

YR30V00005S047

POPPET

2шт.

14

PH30V00015S022

SPRING

2шт.

15

ZD12P01400

O-RING

2шт.

16

PH30V00015S023

PLUG

2шт.

17

2436U1427S25

PLUG

2шт.

18

PH22V00008F2

VALVE PRESSURE RELIE

See Figure 08 -47

1шт.

PH30V00027R100

REPAIR KIT

Incl. 2, 3

1шт.
