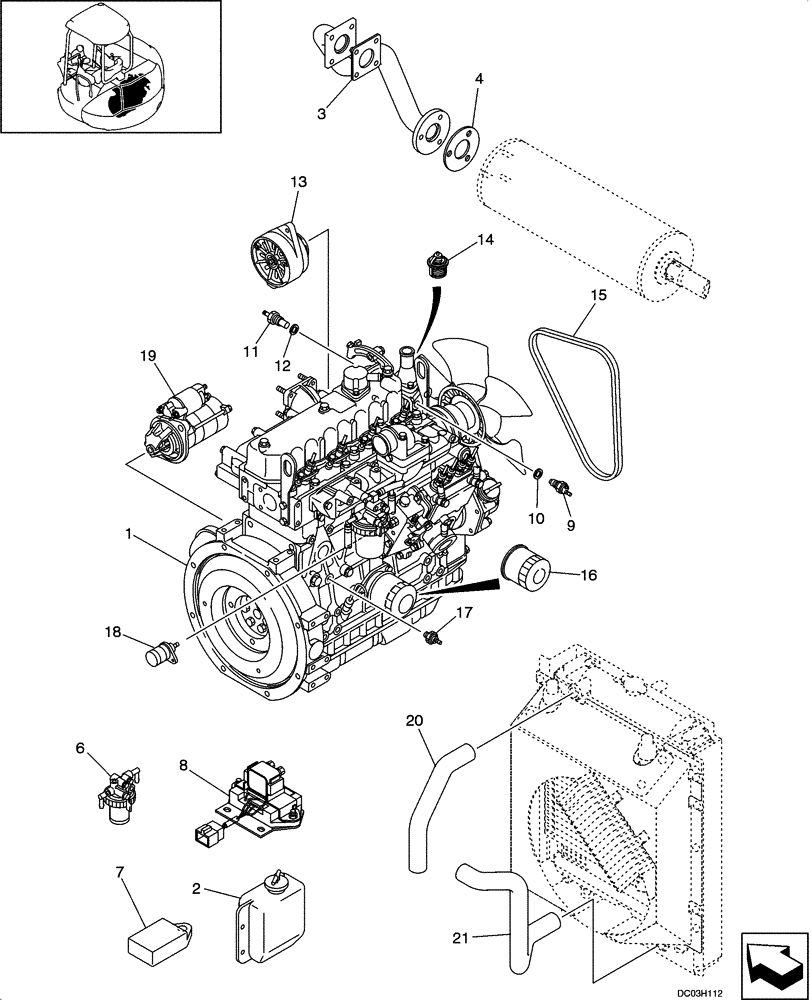

Запчасти Case CX47 (02-02[00]) - ENGINE ASSY (02) - ENGINE

.

YANMAR DIESEL ENGINE

1шт.

.

4TNE88 - EYBC

1шт.

1

PY02P00010F4

ENGINE

1шт.

2

PU01P01024F1

RESERVOIR

1шт.

3

PY12P01019P1

GASKET

1шт.

4

PH12P01005P1

GASKET

1шт.

6

PY02P01006P1

FILTER, FUEL

1шт.

7

PH25S00002P1

TIMER

1шт.

8

PH24S00002P1

RELAY

1шт.

9

VV12125044901

THERMOSTATIC SWITCH,On - 110 Degrees C, 230 Degrees F

(Used for Engine Coolent Temp Warning)

1шт.

10

VV12446544950

GASKET

1шт.

11

PA24S00003P1

SENSOR,50-120 Degree C

(Used for Engine Temp Gauge)

1шт.

12

PA13E01027P1

PACKING

1шт.

13

VV11983677201

ALTERNATOR

See Figure 04 -02

1шт.

13

VV11983677201R

REMAN-ALTERNATOR

CX47

1шт.

13

VV11983677201C

CORE-ALTERNATOR

Return Number

1шт.

14

VV12915549800

THERMOSTAT

1шт.

15

VV25132003800

V-BELT

1шт.

16

VV12915035151

ENGINE OIL FILTER

1шт.

17

VV11425039450

PRESSURE SWITCH,DC6V, 12V, 24V, 49 +/- 1 kPa (7.1 +/- 1.4 psi), PT 1/8"

Engine Oil

1шт.

18

VV11923377931

SOLENOID

1шт.

19

VV12940077012

STARTING MOTOR

See Figure 04 -01

1шт.

20

PH05P01125P1

RADIATOR HOSE

1шт.

21

PH05P01123P1

RADIATOR HOSE

1шт.
