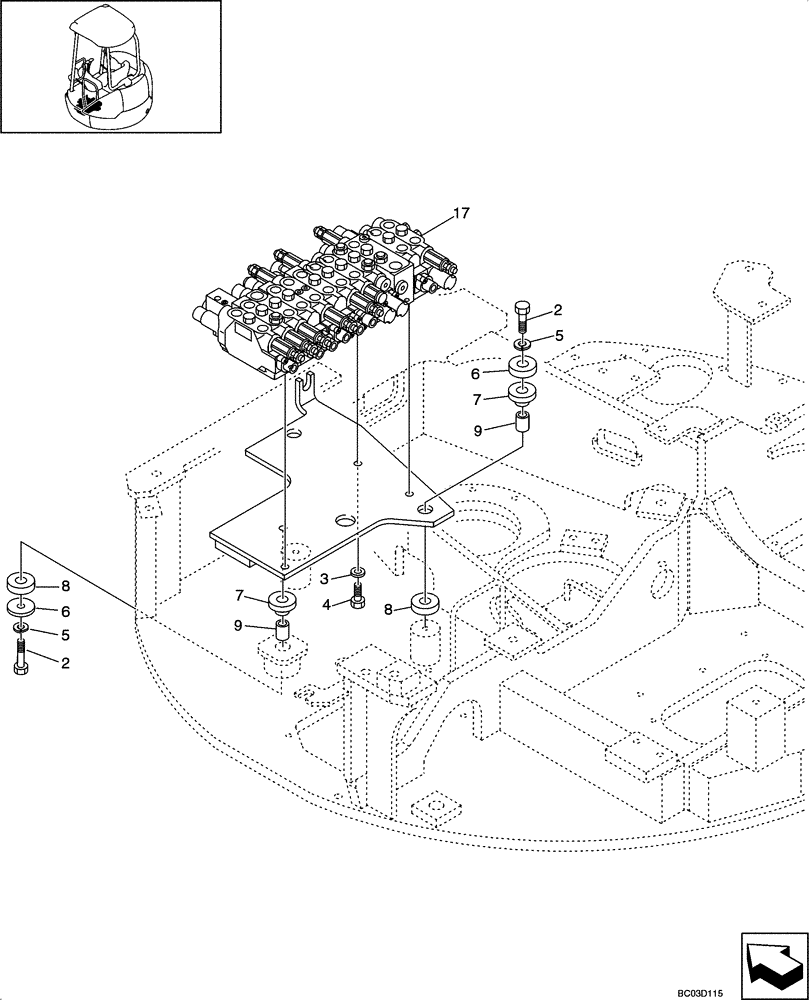

Запчасти Case CX36 (08-40[00]) - VALVE MOUNTING (CX36 ASN PX11-08901) (08) - HYDRAULICS

2

ZS18C10050

SCREW,Hex, M10 x 50mm

3шт.

3

ZW16H10000

WASHER

3шт.

4

ZS18C10025

SCREW,Hex, M10 x 25mm

3шт.

5

ZW26X10000

LOCK WASHER

3шт.

6

2418T21137

WASHER

3шт.

7

PM64H01035P1

RUBBER

3шт.

8

2416Z649

CUSHION

3шт.

9

2418T17903D9

SPACER

3шт.

16

PV64H01041P1

BRACKET

1шт.

17

PX30V00036F1

VALVE

See Figure 08 -42

1шт.
