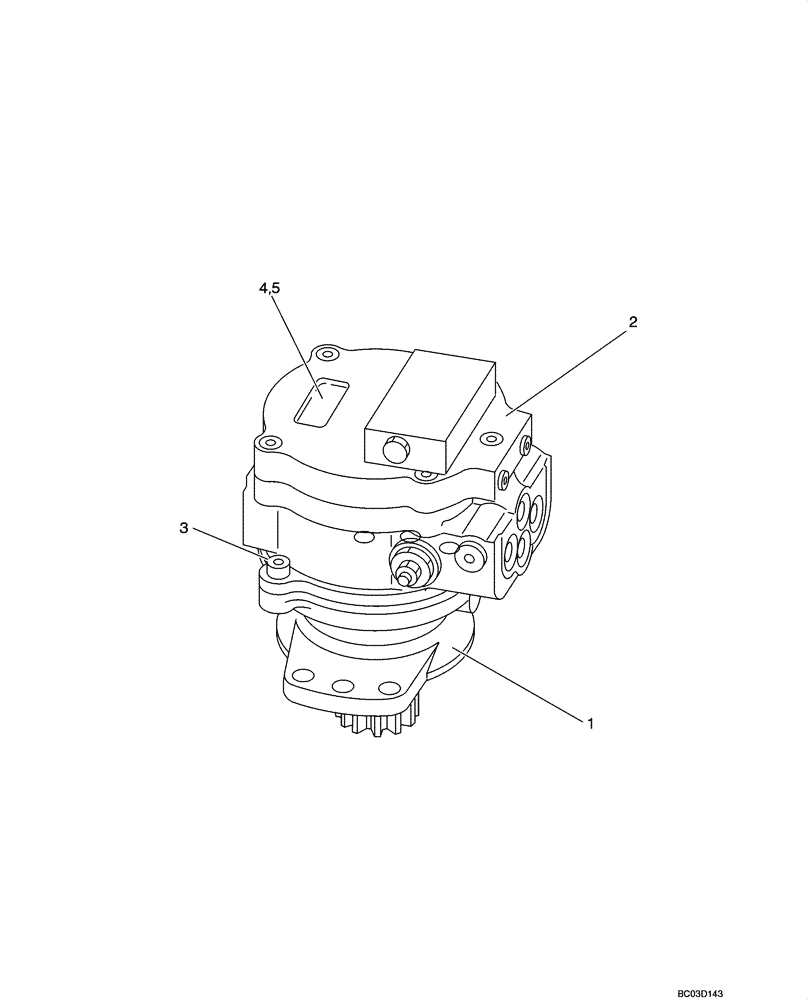

Запчасти Case CX36 (08-33[00]) - MOTOR ASSY, SWING (CX36 ASN PX11 - 08901) (08) - HYDRAULICS

PX15V00018F2

HYDRAULIC MOTOR

CX36 Incl. 1 - 5

1шт.

1

PW15V01019F1

GEAR REDUCTION UNIT

See Figure 08 -34

1шт.

2

PX15V01011F2

HYDRAULIC MOTOR

See Figure 08 -36

1шт.

3

PW15V00016S003

BOLT

2шт.

4

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

5

NSS

NOT SOLD SEPARAT

Screw

2шт.
