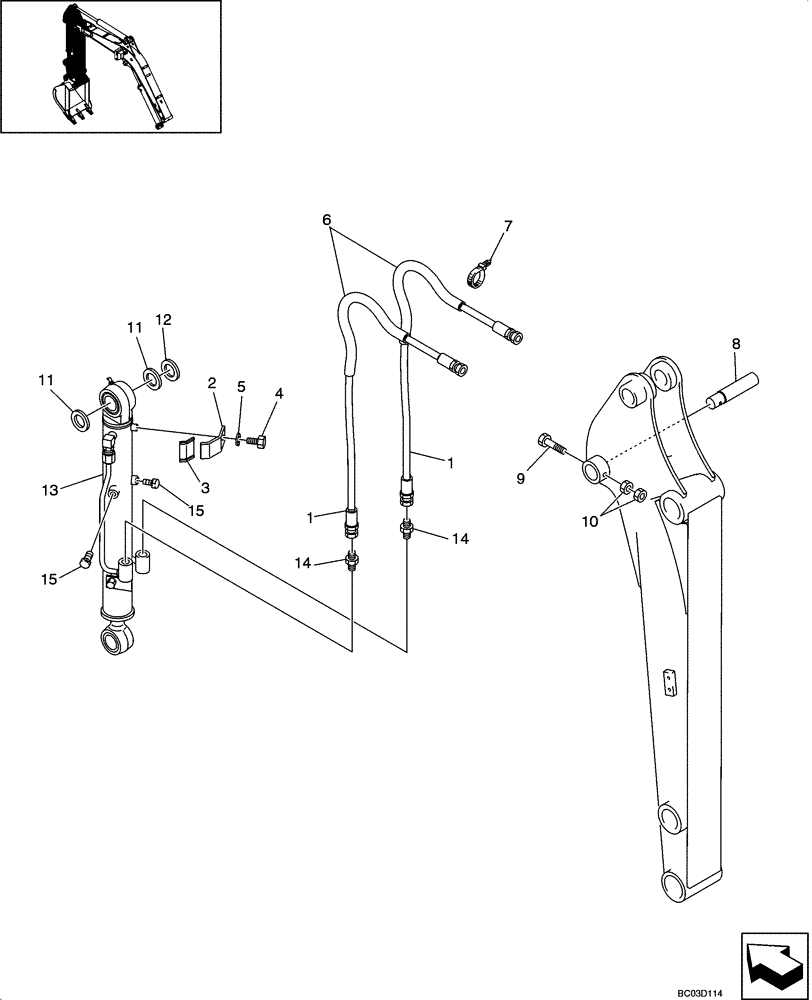

Запчасти Case CX36 (08-21[00]) - HYDRAULIC LINES - ARM (CX36 ASN PX11 - 08901) (08) - HYDRAULICS

1

PM42H01042DB

HOSE ASSY.,9.5mm ID x 1420mm L

2шт.

2

PW43H01016P2

CLAMP

1шт.

3

PW43H01018P1

RUBBER JOINT

1шт.

4

ZS18C10020

SCREW,Hex, M10 x 20mm

1шт.

5

ZW26X10000

LOCK WASHER

1шт.

6

2414Z199D70

PROTECTIVE SLEEVE

2шт.

7

PY01P01043D8

CABLE TIE,102mm L

1шт.

8

PX12B01206P1

PIN,40mm OD x 157mm L

1шт.

9

HS18C10080G3

BOLT

1шт.

10

ZN18C10008

NUT

2шт.

11

PR02B01107P1

SHIM,0.5mm Thk

2шт.

12

PR02B01123D1

SHIM,0.9mm Thk

1шт.

13

PW01V00046F1

CYLINDER

Bucket, See Figure 08 -82

1шт.

14

HH25S06006G1

HYD CONNECTOR

2шт.

15

PV02B01073D4

CAP

2шт.
