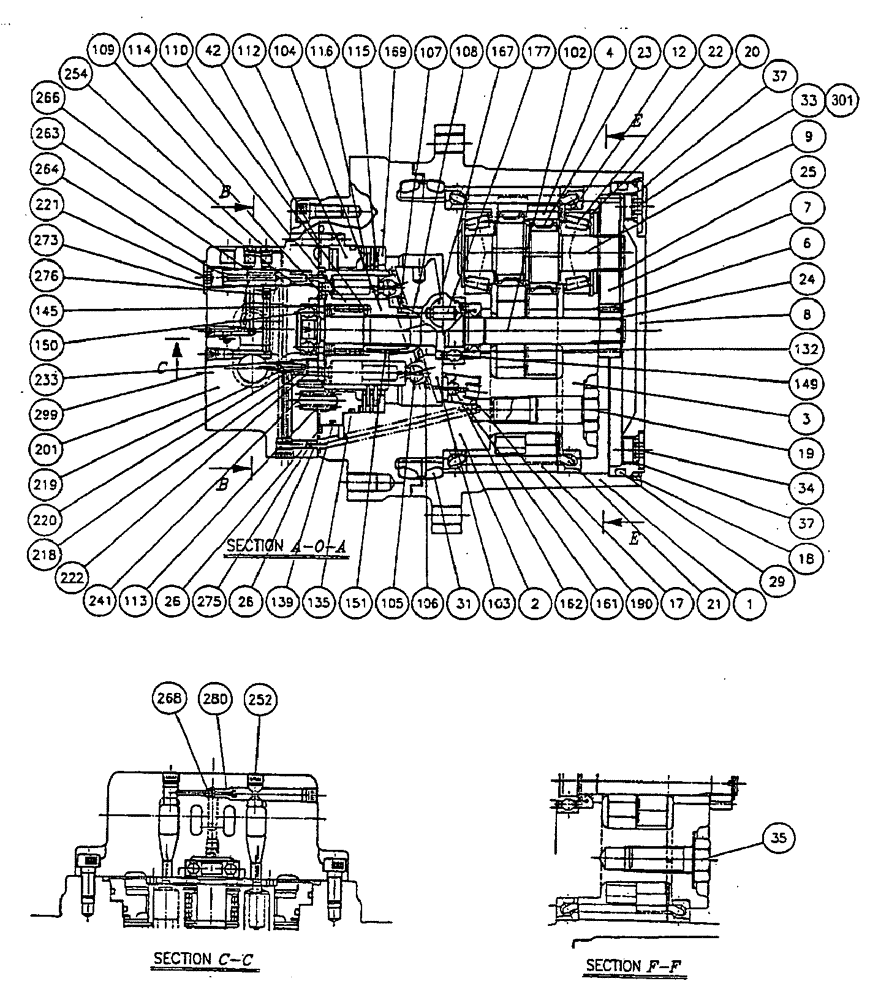

Запчасти Case CX36 (06-04[00]) - MOTOR - TRACK DRIVE (CX36 ASN PX11 - 08901) (06) - POWER TRAIN

PX15V00020F2

HYDRAULIC MOTOR

Incl. 6 - 301

1шт.

1

NSS

NOT SOLD SEPARAT

Hub

1шт.

2

NSS

NOT SOLD SEPARAT

Spindle

1шт.

3

NSS

NOT SOLD SEPARAT

Flange

1шт.

4

NSS

NOT SOLD SEPARAT

Gear

2шт.

6

PX15V00020S006

GEAR

1шт.

7

NSS

NOT SOLD SEPARAT

Gear

2шт.

8

PW15V00018S008

COVER

1шт.

9

NSS

NOT SOLD SEPARAT

Shaft

2шт.

12

NSS

NOT SOLD SEPARAT

Spacer

4шт.

17

PW15V00018S017

PIN

28шт.

18

PW15V00018S018

RING

1шт.

19

2441U831S19

BOLT

2шт.

20

EN01W00009S013

RING

2шт.

21

PW15V00018S021

BALL BEARING

2шт.

22

NSS

NOT SOLD SEPARAT

Bearing, Roller

4шт.

23

NSS

NOT SOLD SEPARAT

Bearing, Needle

4шт.

24

ZR16X01500

SNAP RING

1шт.

25

ZR16X02200

RING

4шт.

26

PH15V00009S030

O-RING

1шт.

28

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

2шт.

29

ZD11G17000

O-RING,169.30mm ID x 180.70mm OD x 5.70mm

1шт.

31

NSS

NOT SOLD SEPARAT

Seal, Floating

2шт.

33

PH15V00009S033

PLUG

1шт.

34

YR15V00002S121

PLUG

2шт.

35

PH15V00009S035

BOLT

2шт.

37

ZD12P01400

O-RING

3шт.

42

PY15V00006S142

PIN

2шт.

102

PW15V00018S102

SHAFT

1шт.

103

PW15V00018S103

PLATE

1шт.

104

PW15V00018S104

BLOCK

1шт.

105

NSS

NOT SOLD SEPARAT

Piston

7шт.

106

NSS

NOT SOLD SEPARAT

Shoe

7шт.

107

PW15V00018S107

PLATE

1шт.

108

2441U831S108

BALL

1шт.

109

PW15V00018S109

PLATE

1шт.

110

2441U831S110

WASHER

2шт.

112

PH15V00009S112

PISTON

1шт.

113

PH15V00009S113

SPRING

8шт.

114

YJ15V00002S114

SPRING

1шт.

115

PW1500018S115

PLATE

2шт.

116

YJ15V00002S116

PLATE

2шт.

132

2441U831S132

OIL SEAL

1шт.

135

PY15V00005S135

O-RING

1шт.

139

PH15V00009S139

O-RING

1шт.

145

2441U831S145

RING

1шт.

149

YJ15V00002S149

BALL BEARING

1шт.

150

2441U831S150

BALL BEARING

1шт.

151

PH15V00009S151

ROLLER

3шт.

161

NSS

NOT SOLD SEPARAT

Piston

1шт.

162

NSS

NOT SOLD SEPARAT

Shoe

1шт.

167

PY15V00006S167

SPOOL

2шт.

169

YJ15V00002S169

PLATE

1шт.

177

PH15V00009S177

PIN

1шт.

190

PW15V00018S190

SPRING

1шт.

201

NSS

NOT SOLD SEPARAT

Flange

1шт.

218

YJ15V00002S118

SEAT

1шт.

219

PH15V00009S219

CHECK VALVE

1шт.

220

YJ15V00002S120

SPRING

1шт.

221

2441U995S192

PLUG

2шт.

222

YJ15V00002S122

RING

1шт.

223

NSS

NOT SOLD SEPARAT

Spool

1шт.

224

PH15V00009S224

PLUG

2шт.

225

PH15V00009S225

SEAT

2шт.

226

2441U831S126

PLUG

2шт.

227

2441U831S127

VALVE

2шт.

228

PH15V00009S228

SPRING

2шт.

230

2441U831S130

SPRING

2шт.

233

ZD12P00700

O-RING,1.6mm Thk x 6.8mm ID, 90 Duro

1шт.

236

ZD12P02200

O-RING

2шт.

237

ZD12P01200

O-RING

2шт.

241

2441U815S141

PIN

2шт.

243

ZS23C08020

SCREW,Hex Socket Head, M8 x 20mm

6шт.

252

YX15V00003S146

PLUG

3шт.

254

PY15V00006S154

PLUG

6шт.

263

NSS

NOT SOLD SEPARAT

Spool

1шт.

264

NSS

NOT SOLD SEPARAT

Stopper

1шт.

266

PH15V00009S401

SPRING

1шт.

268

PH15V00009S268

BALL

1шт.

273

ZD12P01100

O-RING

2шт.

275

PH15V00009S275

ORIFICE

4шт.

280

PH15V00009S280

PLUG

1шт.

299

PH15V00009S299

LABEL

1шт.

301

YT15V00008S033

PLUG

1шт.

PW15V00018R300

REPAIR KIT

Incl. 2, 3, 19, 35

1шт.

PW15V00018R310

REPAIR KIT

Incl. 2, 9, 12, 22, 23

1шт.

PX15V00020R430

REPAIR KIT

Incl. 7

1шт.

PX15V00020R440

REPAIR KIT

Incl. 31

1шт.

PX15V00020R460

REPAIR KIT

Incl. 161, 162

1шт.

PW15V00018R390

REPAIR KIT

Incl. 201, 223, 218, 219, 263, 220, 222, 233, 264, 266, 268, 280, 299, 221, 224, 225, 226, 227, 228, 230, 236, 237, 241, 273, 252, 275, 243, 254

1шт.

PH15V00009R370

REPAIR KIT

Incl. 263, 264

1шт.

PW15V00018R380

REPAIR KIT

Incl. 26, 29, 132, 135, 139, 233, 28, 31,236,237,273,37

1шт.

PW15V00018R410

REPAIR KIT

Incl. 2, 3

1шт.

PW15V00018R420

REPAIR KIT

Incl. 201, 223

1шт.

PW15V00018R430

REPAIR KIT

Incl. 105, 106

1шт.

PW15V00018R440

REPAIR KIT

Incl. 1, 301, 37

1шт.
