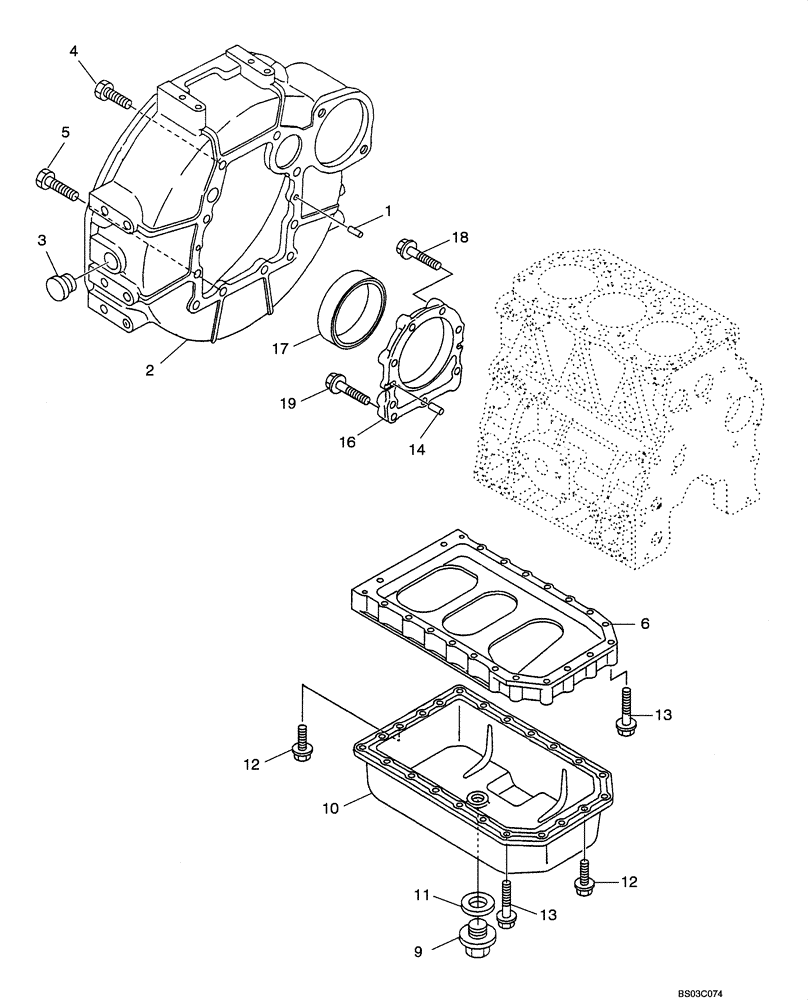

Запчасти Case CX36 (02-19[00]) - FLYWHEEL HOUSING AND OIL PAN (02) - ENGINE

YANMAR DIESEL ENGINE

1шт.

3TNE82A-EYBC, CX31

1шт.

3TNE82A-EYBD, CX36

1шт.

1

VV12910001580

PIN,M8 x 16mm

8 x 16 mm

4шт.

2

VV12961201600

HOUSING

1шт.

3

VV11962001750

CAP

1шт.

4

VV26206100252

BOLT,M10 x 25mm

M10 x 25 mm

6шт.

5

VV26206100302

BOLT,M10 x 30mm

M10 x 30 mm

4шт.

6

VV11981001730

SPACER

Use VV97777001212 Liquid Gasket on both sides

1шт.

VV11981001790

SUMP

Incl. 9 - 11

1шт.

9

VV11964001640

DRAIN PLUG,M22

1шт.

10

NSS

NOT SOLD SEPARAT

Oil Pan

1шт.

11

VV22190220002

SEAL,21.75mm ID x 30mm OD x 2.5mm Thk

1шт.

12

VV26106080162

BOLT,M8 x 16mm

M8 x 16 mm

6шт.

13

VV26106080452

BOLT,M8 x 45mm

M8 x 45 mm

22шт.

14

VV12910001580

PIN,M8 x 16mm

8 x 16 mm

2шт.

VV71981001650

CASE ASSY.

Incl.16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Case, Use VV97777001212 Liquid Gasket on Engine side

1шт.

17

VV11981001780

SEAL

1шт.

18

VV12948601670

BOLT,M8 x 30mm

M8 x 30 mm

6шт.

19

VV26106080352

BOLT,M8 x 35mm

M8 x 35 mm

3шт.
