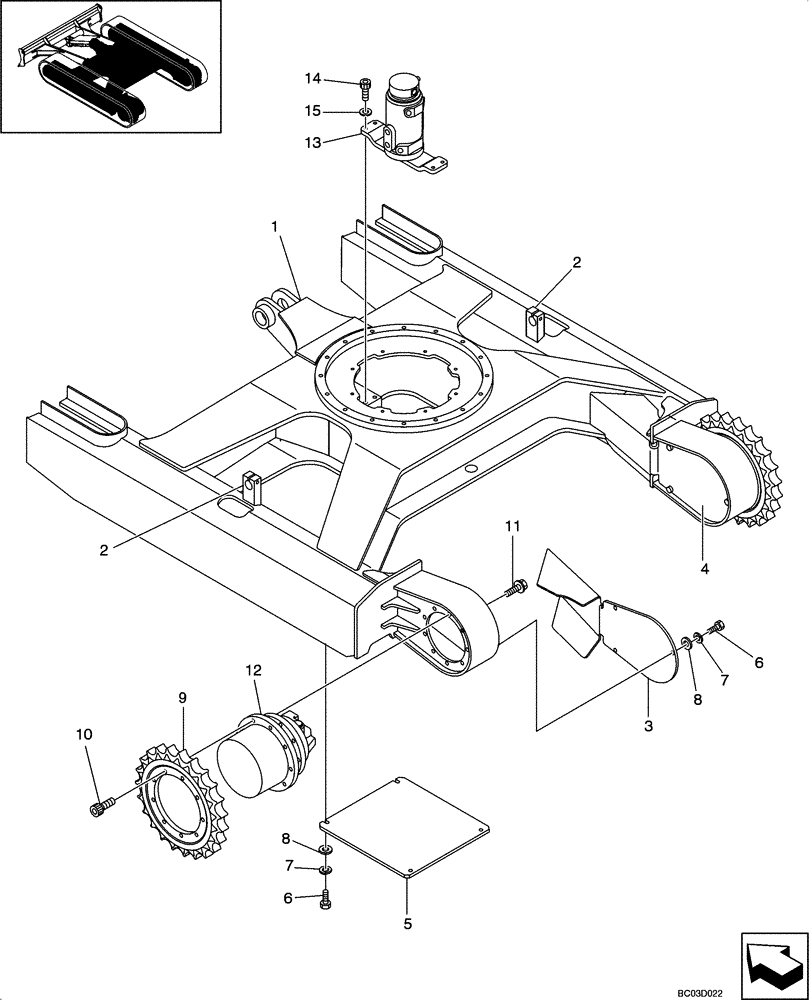

Запчасти Case CX36 (05-02[00]) - UNDERCARRIAGE (CX36 ASN PX11 - 08901) (11) - TRACKS/STEERING

1

PW02F00054P1

FRAME

1шт.

2

PW07F01055P1

SUPPORT

2шт.

3

PX01F01003P1

COVER

R.H.

1шт.

4

PW01F01014P1

COVER

L.H.

1шт.

5

PM01F01008P1

COVER

1шт.

6

ZS18C10016

SCREW,Hex, M10 x 16mm

10шт.

7

ZW26X10000

LOCK WASHER

10шт.

8

ZW16H10000

WASHER

10шт.

9

PW53D01001P1

SPROCKET

2шт.

10

ZS28C12040

SCREW,Hex Socket Head, M12 x 40mm

18шт.

11

PV17M01004P1

SCREW

18шт.

12

PX15V00020F2

HYDRAULIC MOTOR

See Figure 06 -04

2шт.

13

PW55V00015F1

JOINT ASSY.

See Figure 08 -38

1шт.

14

ZS18C12040

SCREW,Hex, M12 x 40mm

4шт.

15

ZW16X12000

WASHER

4шт.
