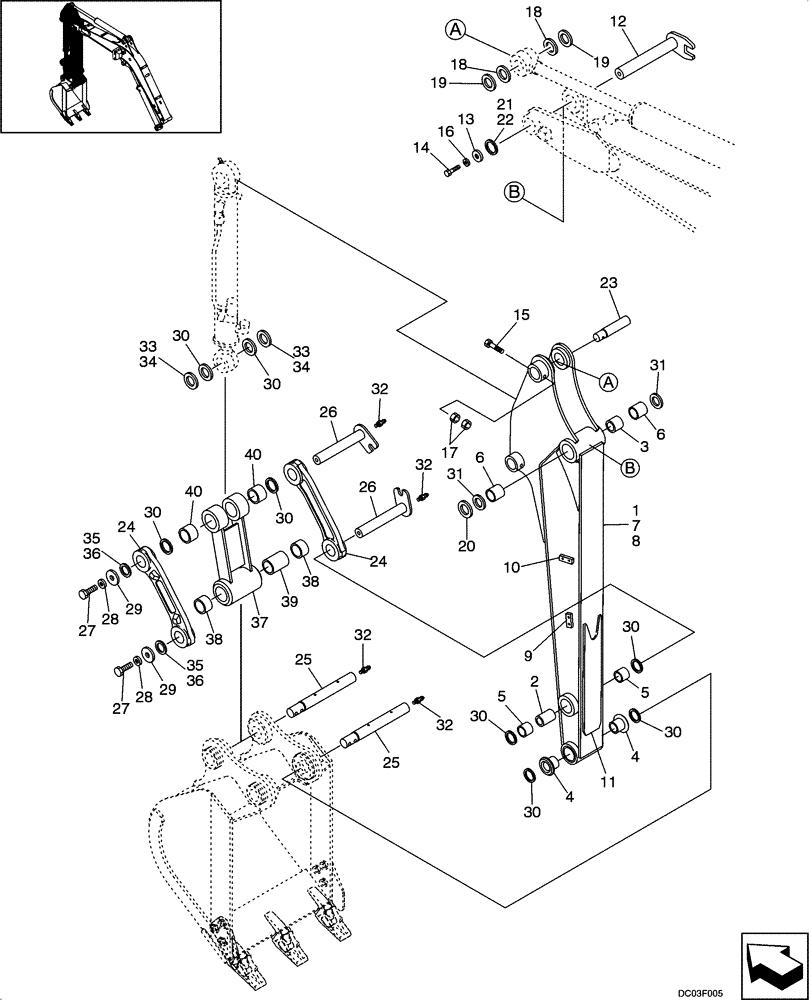

Запчасти Case CX36 (09-53[00]) - ARM ASSY (CX36 ASN PX11 - 08901) (09) - CHASSIS/ATTACHMENTS

PX12B000064F2

ARM ASSY.

Incl. 1 - 11

1шт.

1

PX12B00063F2

ARM

1шт.

2

PW12B01208D1

COLLAR

1шт.

3

PX12B01016P1

COLLAR

1шт.

4

PW12B01237P2

BUSHING,40mm ID x 82mm OD x 55mm L

2шт.

5

PW12B01209P2

BUSHING,45mm ID x 50mm OD x 31.5mm L

2шт.

6

PX12B01177P2

BUSHING,45mm ID x 55mm OD x 55mm L

2шт.

7

PX12B00068P1

ARM

Incl. 8 - 11

1шт.

8

PX12B01212P1

ARM

Incl. 9, 10

1шт.

9

PM12B01315P1

BLOCK

4шт.

10

PX12B01185P1

BLOCK

4шт.

11

PW12B01277P1

PLATE

1шт.

12

PW12B01255P1

PIN

1шт.

13

PW12B01242P1

WASHER

1шт.

14

ZS18C16035

SCREW,Hex, M16 x 35mm

1шт.

15

HS18C10085G2

BOLT

1шт.

16

ZW16H16000

WASHER

1шт.

17

ZN18C10008

NUT

2шт.

18

PR02B01108P1

SHIM,0.5mm Thk

2шт.

19

PR02B01121D1

SHIM,47mm ID x 70mm OD x 0.9mm Thk

2шт.

20

PW02B01239P1

SHIM,0.5mm Thk

1шт.

21

PW12B01243D1

SHIM,0.5mm Thk

1шт.

22

PW12B01243D2

SHIM,0.9mm Thk

2шт.

23

PX12B01205P1

PIN,45mm OD x 157mm L

1шт.

24

PW12B01224P1

LINK

2шт.

25

PW12B01250P2

PIN

OD 35 x 280mm Long -- (Secures with Roll Pin PX61B01091P1)

2шт.

PX61B01091P1

PIN,10mm OD x 58mm L

Roll (Used to secures Pin PW12B01250P2), Not Shown

2шт.

26

PW12B01253P2

PIN

2шт.

27

ZS18C16030

SCREW,Hex, M16 x 30mm

2шт.

28

ZW16H16000

WASHER

2шт.

29

PW12B01216P1

WASHER

2шт.

30

PN54D01001D3

SEAL,40mm ID x 50mm OD x 4mm Thk

10шт.

31

2445R138D20

SEAL,45mm ID x 55mm OD x 4mm Thk

2шт.

32

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

6шт.

33

PR02B01107P1

SHIM,0.5mm Thk

2шт.

34

PR02B01123D1

SHIM,0.9mm Thk

2шт.

35

PB12B01013D2

SHIM

2шт.

36

PB12B01013D1

SHIM

1шт.

PW12B01231F3

LINK

Incl. 37 - 40

1шт.

37

PW12B01257P1

LINK

1шт.

38

PX12B01151P1

BUSHING,40mm ID x 50mm OD x 50mm L

2шт.

39

PW12B01208D2

COLLAR

1шт.

40

PW12B01209P2

BUSHING,45mm ID x 50mm OD x 31.5mm L

2шт.
