Запчасти Case CX36 (09-43[00]) - INSTRUMENT CLUSTER (09) - CHASSIS/ATTACHMENTS

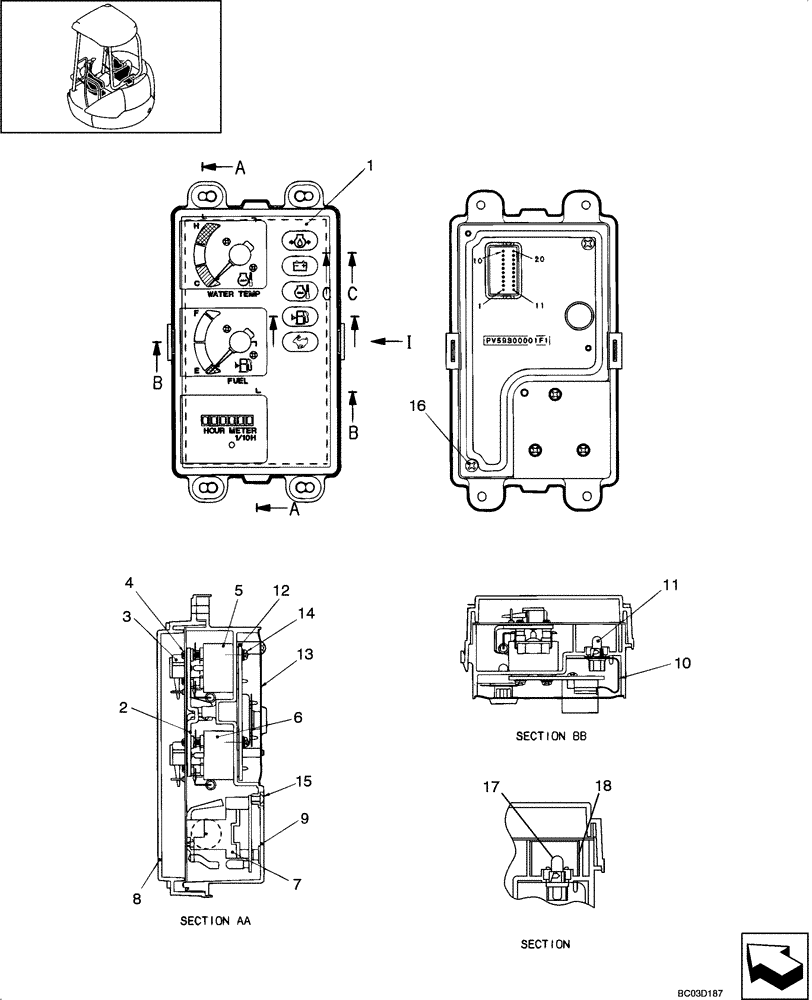

Схема запчастей Case CX36 - (09-43[00]) - INSTRUMENT CLUSTER (09) - CHASSIS/ATTACHMENTS
3
5
13
8
16
18
10
12
14
2
7
17
11
1
9
15
4
6

Артикул

Название

Примечание

Количество

PV59S00001F2

GAUGE

Incl. 1 - 18

1шт.

1

PV59S00001S001

D PANEL

1шт.

2

PM59S00002S002

D PANEL

1шт.

3

PM59S00002S003

POINTER

2шт.

4

PM59S00002S004

SCREW

4шт.

5

PM59S00002S005

GAUGE

1шт.

6

PM59S00002S006

GAUGE

1шт.

7

PM59S00002S007

METER

1шт.

8

PM59S00002S008

GLASS

1шт.

9

PM59S00002S009

CASE

1шт.

10

PM59S00002S010

BOARD

1шт.

11

PM59S00002S011

LAMP

5шт.

12

PM59S00002S012

BOARD

1шт.

13

PM59S00002S013

COVER

1шт.

14

PM59S00002A014

SCREW

6шт.

15

PH59S00002S012

SCREW

3шт.

16

PM59S00002S016

SCREW

2шт.

17

PM59S00002S017

LAMP

1шт.

18

PM59S00002S018

TUBE

1шт.

Выбрано товаров: 19
