(09-26[00]) - SEAT MOUNTING AND SEAT BELT

Запчасти Case CX36 (09-26[00]) - SEAT MOUNTING AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

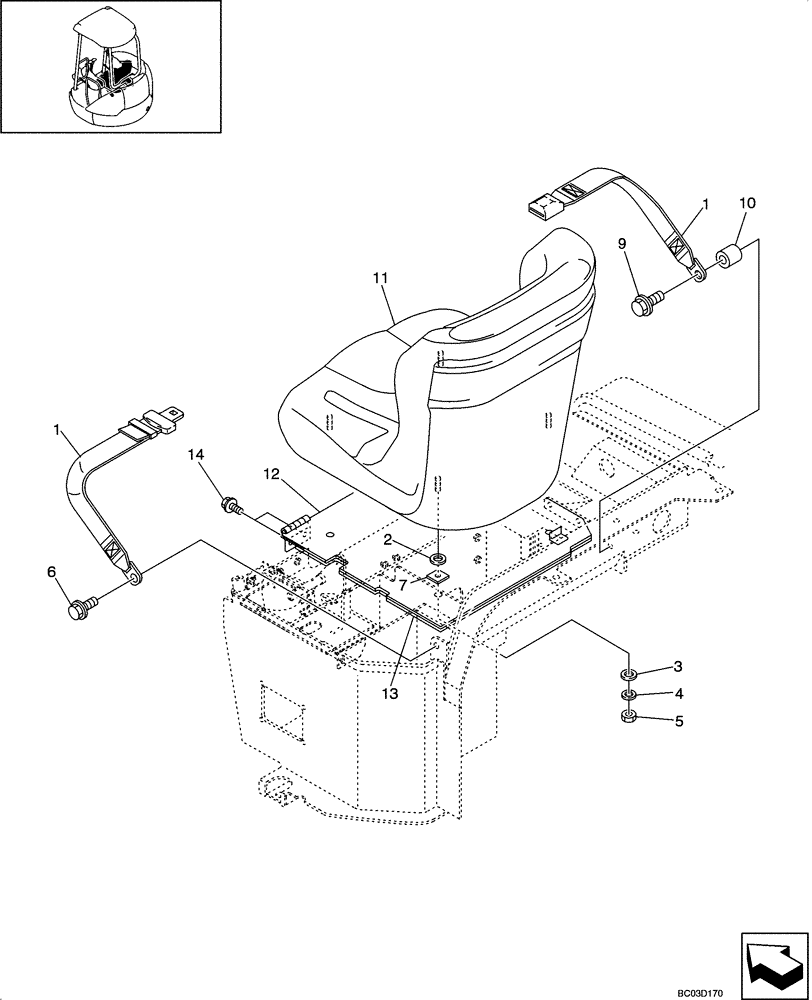

Схема запчастей Case CX36 - (09-26[00]) - SEAT MOUNTING AND SEAT BELT (09) - CHASSIS/ATTACHMENTS
14
1
13
11
3
1
5
7
2
10
12
9
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2410R106RF1

SAFETY BELT

SAFETY BELT

1шт.

2

ZW16H08000

WASHER

4шт.

3

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

4шт.

4

ZW26X08000

LOCK WASHER

4шт.

5

ZN18C08007

NUT

4шт.

6

ZM22C10025

BOLT

1шт.

7

PM25M01106P1

BOOT

4шт.

9

ZM22C10045

BOLT

1шт.

10

YX21C01165D5

SPACER

1шт.

11

PM25M00011F1

SEAT ASSY.

1шт.

PW03M01246F1

COVER ASSY

Incl. 12, 13

1шт.

12

PW30M01277P1

COVER

1шт.

13

PW03M01278P1

RUBBER MOUNTING

1шт.

14

PA03M01093D2

BOLT

4шт.
