(09-10[00]) - BRACKET ASSY - SWING, CAB (NIBBLER & BREAKER CX36 ASN PX11 - 08901)

Запчасти Case CX36 (09-10[00]) - BRACKET ASSY - SWING, CAB (NIBBLER & BREAKER CX36 ASN PX11 - 08901) (09) - CHASSIS/ATTACHMENTS

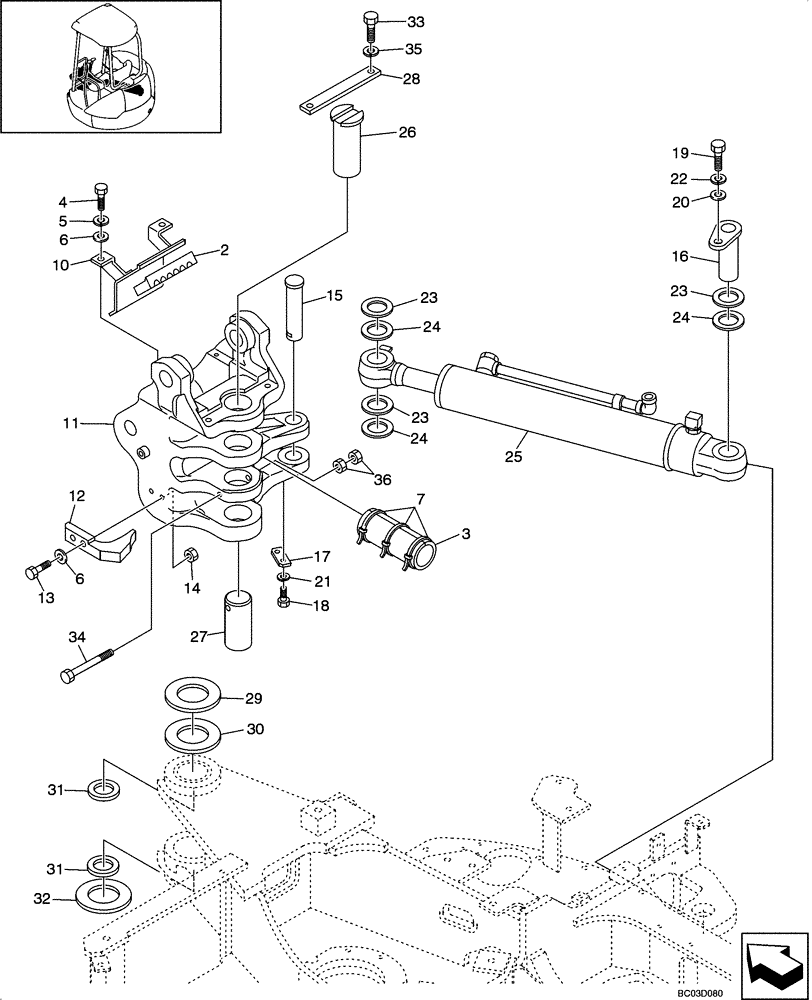

Схема запчастей Case CX36 - (09-10[00]) - BRACKET ASSY - SWING, CAB (NIBBLER & BREAKER CX36 ASN PX11 - 08901) (09) - CHASSIS/ATTACHMENTS
11
29
5
35
26
18
12
31
32
3
27
23
16
31
7
30
13
36
23
15
14
19
33
20
24
21
25
24
24
4
23
6
17
2
10
6
28
22
34
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

PM02B01295P1

RUBBER

1шт.

3

PH02B01072P1

GROMMET

1шт.

4

ZS18C10025

SCREW,Hex, M10 x 25mm

2шт.

5

ZW26X10000

LOCK WASHER

2шт.

6

ZW16H10000

WASHER

4шт.

7

PY01P01043D8

CABLE TIE,102mm L

3шт.

10

PW02B01265P1

COVER

1шт.

11

PX02B00064P1

BRACKET

1шт.

12

PW02B01242P1

STOP

1шт.

13

ZS18C10060

SCREW,Hex, M10 x 60mm

2шт.

14

ZN18C10008

NUT

2шт.

PW02B00090F1

ATTACHMENT

Incl. 15 - 25

1шт.

15

PW02B01229P1

PIN

1шт.

16

PW02B01252P1

PIN

1шт.

17

PM02B01220P1

PLATE

1шт.

18

ZS18C10020

SCREW,Hex, M10 x 20mm

2шт.

19

ZS18C12030

SCREW,Hex, M12 x 30mm

1шт.

20

2418T12345

WASHER

1шт.

21

ZW26X10000

LOCK WASHER

2шт.

22

ZW26X12000

LOCK WASHER

1шт.

23

PR02B01108P1

SHIM,0.5mm Thk

4шт.

24

PR20B01121D1

SHIM

4шт.

25

PW01V00050F2

CYLINDER

Swing, See Figure 08 -85

1шт.

PW02B00089F1

BRACKET

Incl. 26 - 36

1шт.

26

PW02B01230P2

PIN

1шт.

27

PW02B01231P1

PIN

1шт.

28

PW02B01244P1

PLATE

1шт.

29

PW02B01225P1

WASHER

1шт.

30

PW02B01225P1

WASHER

1шт.

31

2445R01225P1

SEAL,65mm ID x 80mm OD x 4mm Thk

2шт.

32

PW02B01224P1

SHIM,0.5mm Thk

1шт.

33

ZS18C10025

SCREW,Hex, M10 x 25mm

2шт.

34

HS18C12135G1

BOLT

1шт.

35

ZW26X10000

LOCK WASHER

2шт.

36

ZN18C12010

NUT

2шт.
