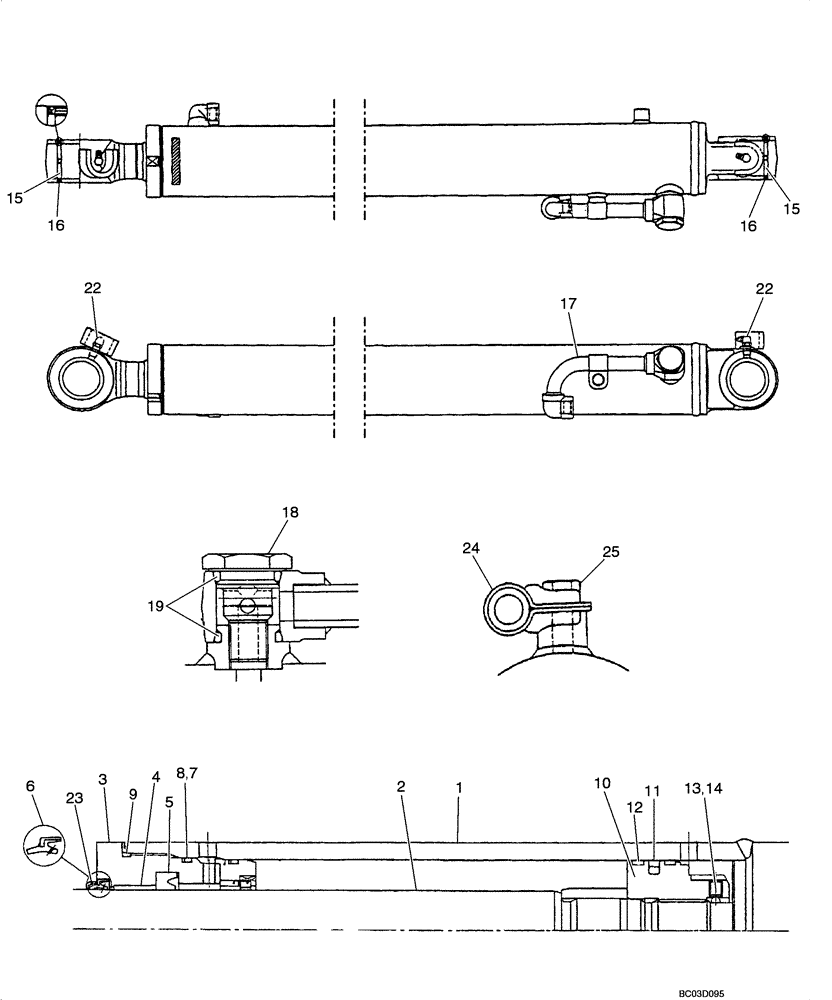

Запчасти Case CX36 (08-81[00]) - CYLINDER ASSY, ARM (CX36 ASN PX11 - 08901) (08) - HYDRAULICS

PX01V00035F2

CYLINDER ASSY.

CX36, Incl. 1 - 25

1шт.

1

NSS

NOT SOLD SEPARAT

Cylinder Tube Assy.

1шт.

2

NSS

NOT SOLD SEPARAT

Piston Rod Assy.

1шт.

3

PW01V00043S003

CYLINDER HEAD

1шт.

4

PW01V00010S004

BUSHING

1шт.

5

2438U635S3

RING

1шт.

6

PH01V00006S006

RING

1шт.

7

ZD12G07500

O-RING,74.40mm ID x 80.60mm OD x 3.10mm

1шт.

8

PH01V00015S008

BACK-UP RING

1шт.

9

ZD11G08000

O-RING,79.40mm ID x 85.60mm OD x 3.10mm

1шт.

10

PW01V00043S015

PISTON

1шт.

11

2438U852S15

RING

1шт.

12

PH01V00015S017

RING

2шт.

13

2438U1057S16

SET SCREW

1шт.

14

2436U946S11

BALL

1шт.

15

PW01V01086D1

BUSHING

2шт.

16

2438U1163S25

SEAL

4шт.

17

PW01V00045S022

PIPE ASSY.

1шт.

18

PH01V00017S027

PLUG

1шт.

19

ZD12P02290

O-RING

2шт.

22

ZG91U02000

LUBE NIPPLE

2шт.

23

PW01V00043S030

CAP

1шт.

24

PW01V00043S032

CLAMP

1шт.

25

LF01V00002S034

BOLT

1шт.

PX01V00035R100

REPAIR KIT

Piston Side, Incl. 1, 15

1шт.

PX01V00035R200

REPAIR KIT

Rod Side, Incl. 2, 15

1шт.

PW01V00048R300

REPAIR KIT

Incl. 5 - 9, 11, 12

1шт.
