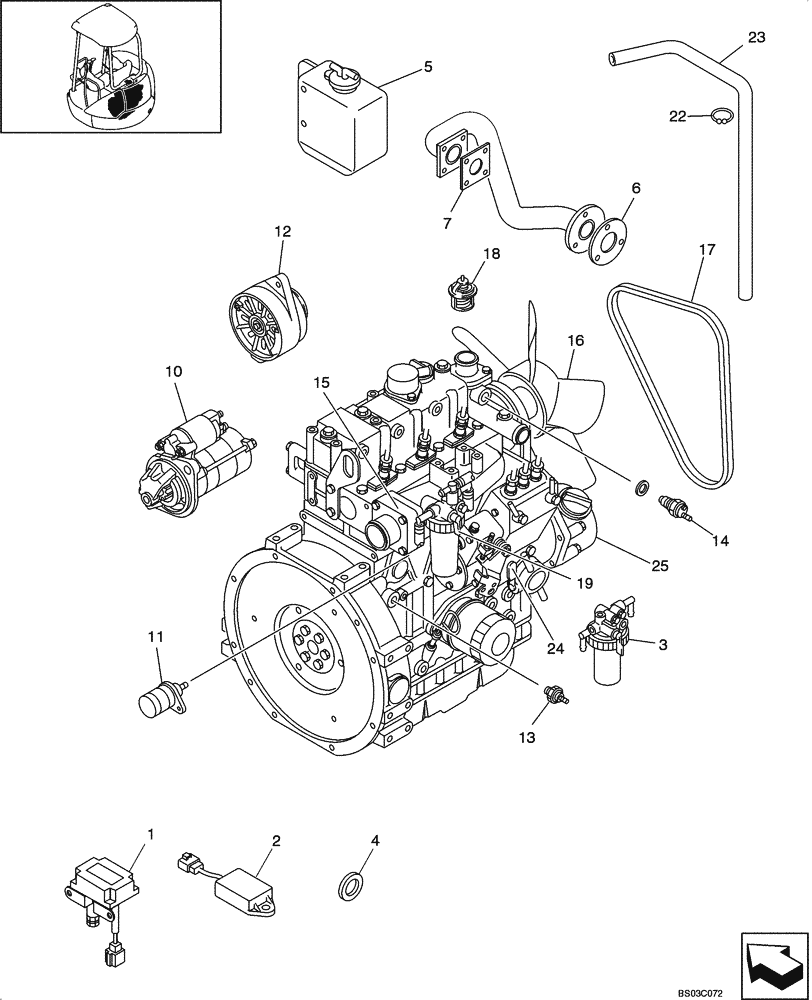

Запчасти Case CX36 (02-02[00]) - ENGINE ASSY (02) - ENGINE

.

PW02P00007F2

ENGINE

3TNE82A-EYBC, CX31, See Figure 02 -01

1шт.

.

PX02P00009F4

ENGINE

3TNE82A-EYCD, CX36, See Figure 02 -01

1шт.

1

PH24S00002P1

RELAY

See Figure 04 -05

1шт.

2

PH25S00002P1

TIMER

See Figure 04 -06

1шт.

3

PY02P01006P1

FILTER, FUEL

1шт.

4

PA13E01027P1

PACKING

1шт.

5

PU01P01024F1

RESERVOIR

1шт.

6

PH12P01005P1

GASKET

1шт.

7

2420T7475

GASKET

1шт.

22

PA21P01003D3

CLIP

1шт.

23

PW02P01027D4

HOSE

1шт.

24

PW02P010289P1

CAP

1шт.

25

VV71981001500

HOUSING

See Figure 02 -11

1шт.

.

YANMAR DIESEL PARTS NUMBER

1шт.

1

VV12913677101

RELAY

1шт.

2

VV12921177920

TIMER

Timer

1шт.

3

VV12933555700

WATER TRAP

1шт.

4

VV12915049360

PACKING

1шт.

5

VV12146844510

TANK

1шт.

6

VV10395413201

GASKET

1шт.

7

VV12470111911

GASKET

1шт.

10

VV12969877010

STARTER MOTOR

See Figure 04 -01

1шт.

10

VV12969877010R

REMAN-STARTER

CX31, CX36

1шт.

10

VV12969877010C

CORE-STARTER

Return Number

1шт.

11

VV11923377931

SOLENOID

Stop

1шт.

12

VV11983677201

ALTERNATOR

1шт.

12

VV11983677201R

REMAN-ALTERNATOR

CX31, CX36

1шт.

12

VV11983677201C

CORE-ALTERNATOR

Return Number

1шт.

13

VV11425039450

PRESSURE SWITCH,DC6V, 12V, 24V, 49 +/- 1 kPa (7.1 +/- 1.4 psi), PT 1/8"

Engine Oil

1шт.

14

VV12125044901

THERMOSTATIC SWITCH,On - 110 Degrees C, 230 Degrees F

Water Temperature

1шт.

15

VV12912077501

HEATER

1шт.

16

VV11926544740

FAN

1шт.

17

VV25132003800

V-BELT

1шт.

18

VV12915549800

THERMOSTAT

1шт.

19

VV11983355620

STRAINER ASSY.

1шт.
