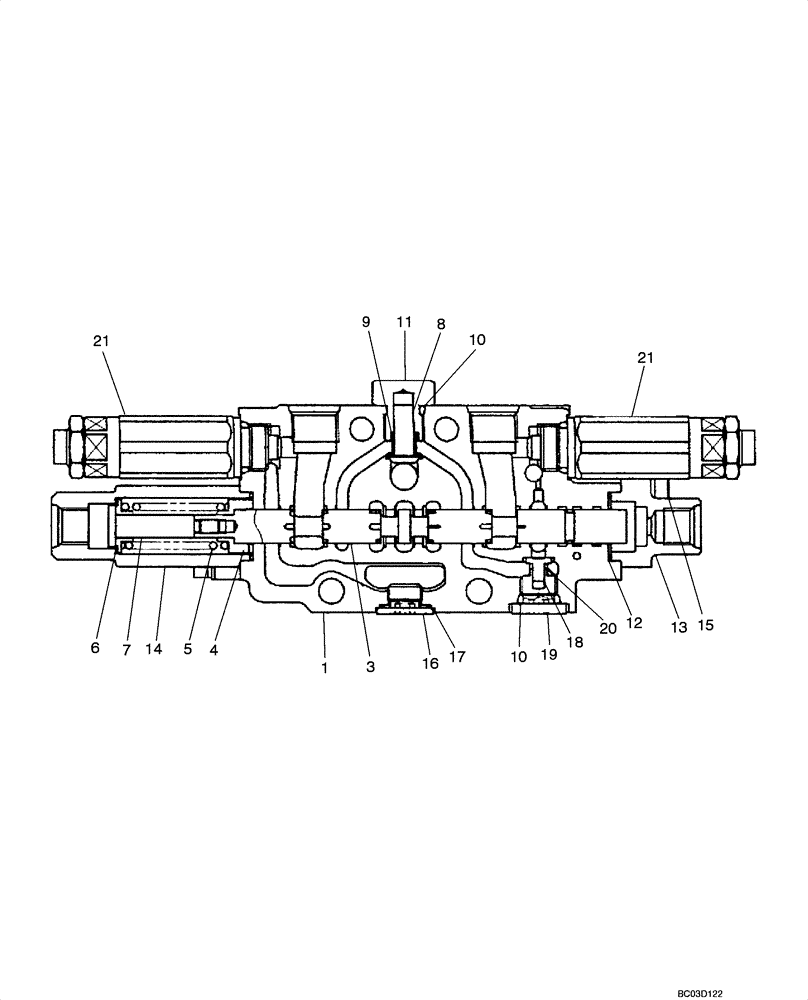

Запчасти Case CX31 (08-51[00]) - VALVE ASSY - ARM (CX31 ASN PW10 - 22001) (08) - HYDRAULICS

PW30V01021F1

VALVE

ARM, Incl. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

Valve, Body

1шт.

PW30V01021R100

SPOOL

Incl. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

Spool

1шт.

4

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

6

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

7

NSS

NOT SOLD SEPARAT

End Spool

1шт.

8

PH30V00003S006

POPPET

1шт.

9

PH30V00003S007

SPRING

1шт.

10

ZD12P01100

O-RING

2шт.

11

PH30V00003S009

PLUG

1шт.

12

PW30V01008S011

O-RING

2шт.

13

PM30V00021S012

COVER

1шт.

14

PM30V00021S013

COVER

1шт.

15

PM30V00021S014

SCREW

4шт.

16

PW30V01011S015

PLUG

1шт.

17

PW30V01008S011

O-RING

1шт.

18

PW30V01011S017

POPPET

1шт.

19

PW30V01011S018

PLUG

1шт.

20

PW30V01011S019

SPRING

1шт.

21

PM22V00005F3

VALVE PRESSURE RELIE

See Figure 08 -63

2шт.
