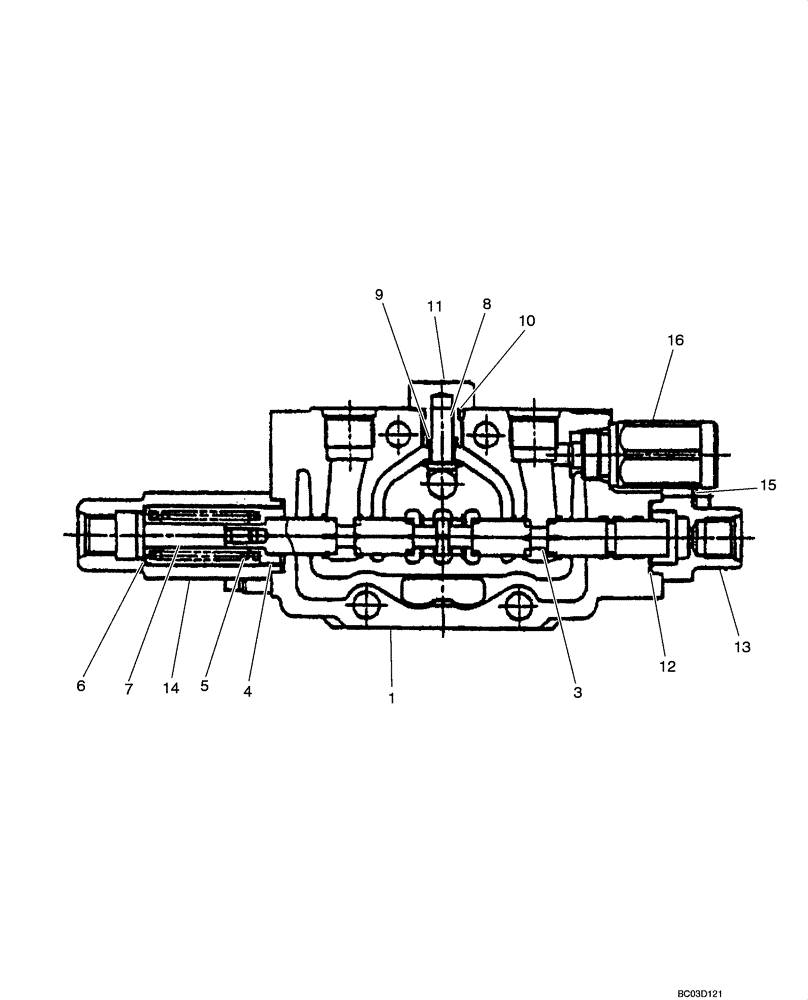

Запчасти Case CX31 (08-50[00]) - VALVE ASSY - BOOM SWING (08) - HYDRAULICS

PX30V00033F1

VALVE

BOOM SWING, Incl. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

Valve, Body

1шт.

PX30V00033R100

REPAIR KIT

Incl. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

Spool

1шт.

4

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

6

NSS

NOT SOLD SEPARAT

Poppet

1шт.

7

NSS

NOT SOLD SEPARAT

End Spool

1шт.

8

PH30V00003S006

POPPET

1шт.

9

PH30V00003S007

SPRING

1шт.

10

ZD12P01100

O-RING

1шт.

11

PH30V00003S009

PLUG

1шт.

12

PW30V01008S011

O-RING

2шт.

13

PM30V00021S012

COVER

1шт.

14

PM30C00021S013

COVER

1шт.

15

PM30V00021S014

SCREW

4шт.

16

PH21V00001F1

BLEEDER VALVE

See Figure 08 -64

1шт.
