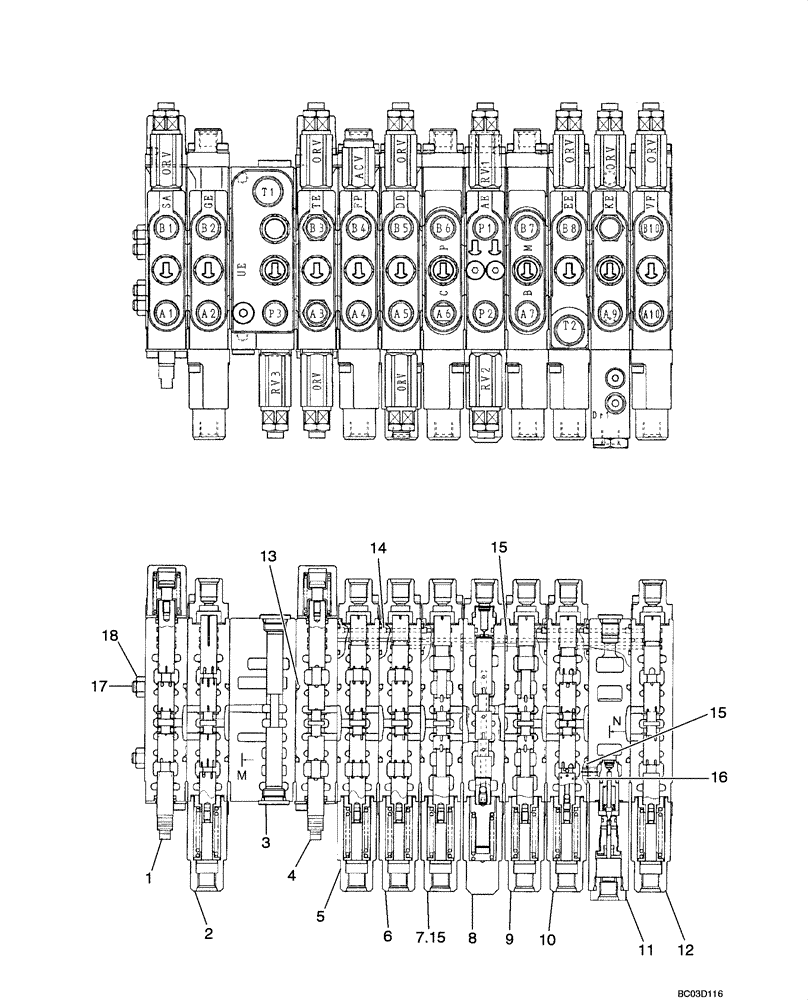

Запчасти Case CX31 (08-41[00]) - VALVE ASSY - CONTROL (CX31 ASN PW10 - 22001) (08) - HYDRAULICS

PW30V00041F2

VALVE

CX31 Incl. 1 - 19

1шт.

2

PW30V00028F1

VALVE

Slew, See Figure 08 -45

1шт.

5

PX30V00033F1

VALVE

Boom Swing, See Figure 08 -50

1шт.

6

PW30V01021F1

VALVE

Arm, See Figure 08 -51

1шт.

7

PW30V01022F1

VALVE

Travel R/H, See Figure 08 -53

1шт.

8

PW30V01023F2

VALVE

Straight Travel, See Figure 08 -55

1шт.

9

PW30V01024F1

VALVE

Travel L/H, See Figure 08 -57

1шт.

10

PW30V01025F1

VALVE

Boom, See Figure 08 -59

1шт.

11

PW30V01026F1

VALVE SECTION

Boom Lock, See Figure 08 -61

1шт.

12

PW30V01027F1

VALVE

Bucket, See Figure 08 -62

1шт.

13

PH30V00003S015

O-RING

11шт.

14

ZD11P01800

O-RING

5шт.

15

ZD11P01000

O-RING

2шт.

16

ZD12P00900

O-RING

1шт.

17

PM30V00018S017

BOLT

4шт.

18

ZN18C08007

NUT

4шт.

19

ZD11P00600

O-RING

4шт.
