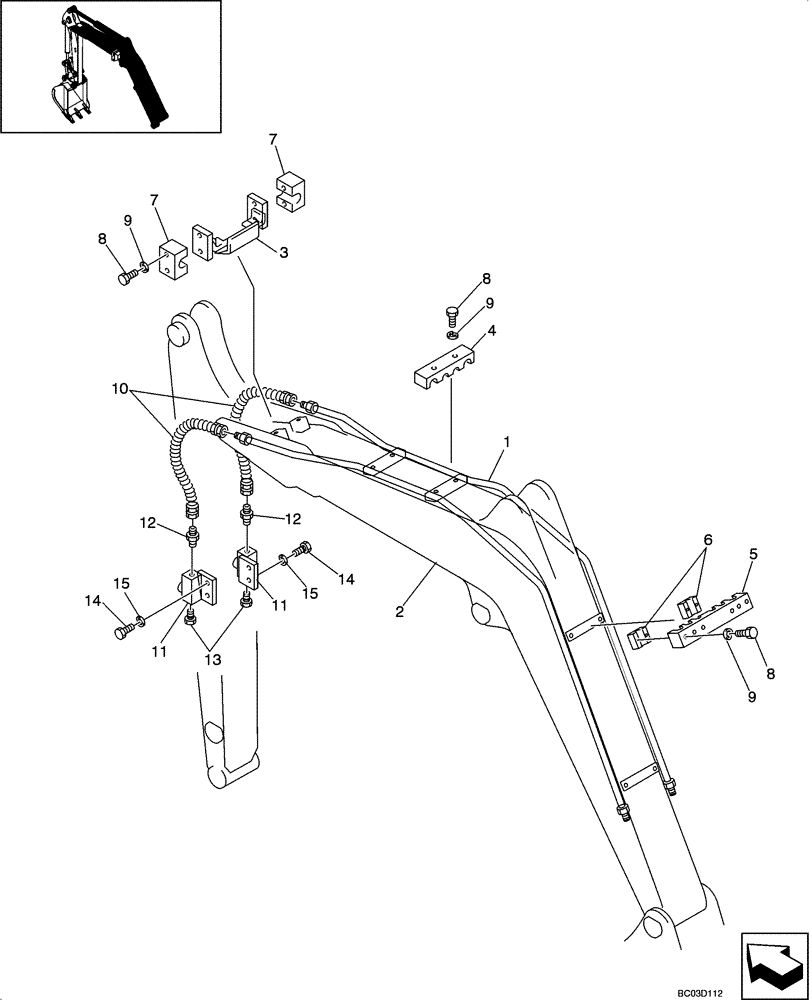

Запчасти Case CX31 (08-18[00]) - HYDRAULIC LINES - BOOM (NIBBLER & BREAKER CX31 ASN PW10 - 22001) (08) - HYDRAULICS

1

PW42H01030P1

TUBE

1шт.

2

PW42H01031P1

TUBE

1шт.

3

PW42H01033P1

BRACKET

1шт.

4

PM42H01049P1

CLAMP

2шт.

5

PM42H01051P1

CLAMP

2шт.

6

PM42H01052P1

CLAMP

4шт.

7

PW43H01012P1

CLAMP

2шт.

8

ZS18C08040

SCREW,Hex, M8 x 40mm

12шт.

9

ZW26X08000

LOCK WASHER

12шт.

10

HX55L08086DY

HOSE ASSY.

2шт.

11

PF25V00001F1

VALVE

See Figure 08 -72

2шт.

12

HH25S08008G1

HYD CONNECTOR

2шт.

13

ZE72X08000

PLUG

2шт.

14

ZS18C10016

SCREW,Hex, M10 x 16mm

4шт.

15

ZW26X10000

LOCK WASHER

4шт.
