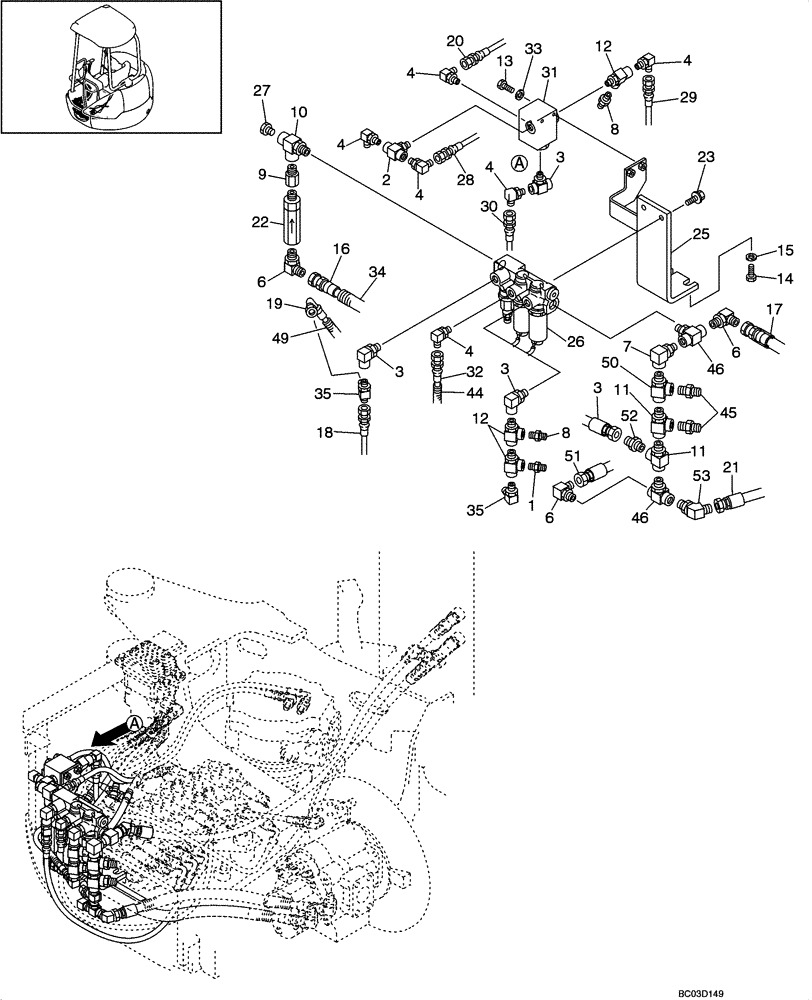

Запчасти Case CX31 (08-10[00]) - HYDRAULICS - PILOT CONTROL LINES, SWING (08) - HYDRAULICS

1

HH45S04004G1

45 ELBOW

1шт.

2

2444Z4239

TEE

1шт.

3

2444Z2894

90 ELBOW

3шт.

4

HH35S04004G1

90 ELBOW

6шт.

6

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

3шт.

7

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

8

HH25S04004G1

HYD CONNECTOR

2шт.

9

2444Z2891

HYD CONNECTOR

1шт.

10

PW64H01011P1

TEE

1шт.

11

HH55Q06006G1

TEE

2шт.

12

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

3шт.

13

ZS18C06065

SCREW,Hex, M6 x 65mm

2шт.

14

ZS18C10025

SCREW,Hex, M10 x 25mm

2шт.

15

ZW16H10000

WASHER

2шт.

16

HX24L06070DX

HOSE ASSY.

1шт.

17

HX22L06120DY

HOSE ASSY.

1шт.

18

HX33L03056DX

HOSE ASSY.

1шт.

19

HX33L03086DX

HOSE ASSY.

1шт.

20

HX33L03076DX

HOSE ASSY.

1шт.

21

HX24L04054DX

HOSE ASSY.

1шт.

22

PY50V00001F1

FILTER

1шт.

23

ZM22C08025

BOLT

2шт.

25

PM64H01048P1

BRACKET

1шт.

26

PH35V00001F2

VALVE

Solenoid, See Figure 08 -69

1шт.

27

ZE72X04000

PLUG

1шт.

28

HX23L03034DX

HOSE ASSY.

1шт.

29

HX33L03062DX

HOSE ASSY.

1шт.

30

HX33L03028DX

HOSE

1шт.

31

PH26V00001F1

VALVE

Shuttle, See Figure 08 -73

1шт.

32

HX23L03090DX

HOSE ASSY.

1шт.

33

ZW16H06000

WASHER

2шт.

34

PU13E01010DK

TUBE

1шт.

35

HH55L04004G1

TEE

2шт.

44

PU13E01002DB

TUBE

1шт.

45

HH25S06006G1

HYD CONNECTOR

2шт.

46

YN64H01048P1

TEE,90 Degree, PF 3/8" x PF 3/8", O-Ring

2шт.

49

2418R676D3

TUBE

1шт.

50

PM64H01036P1

TEE

1шт.

51

HX22L06125DY

HOSE ASSY.

1шт.

52

HH25S04006G1

90 ELBOW

1шт.

53

HH45S06006G1

45 ELBOW

1шт.
