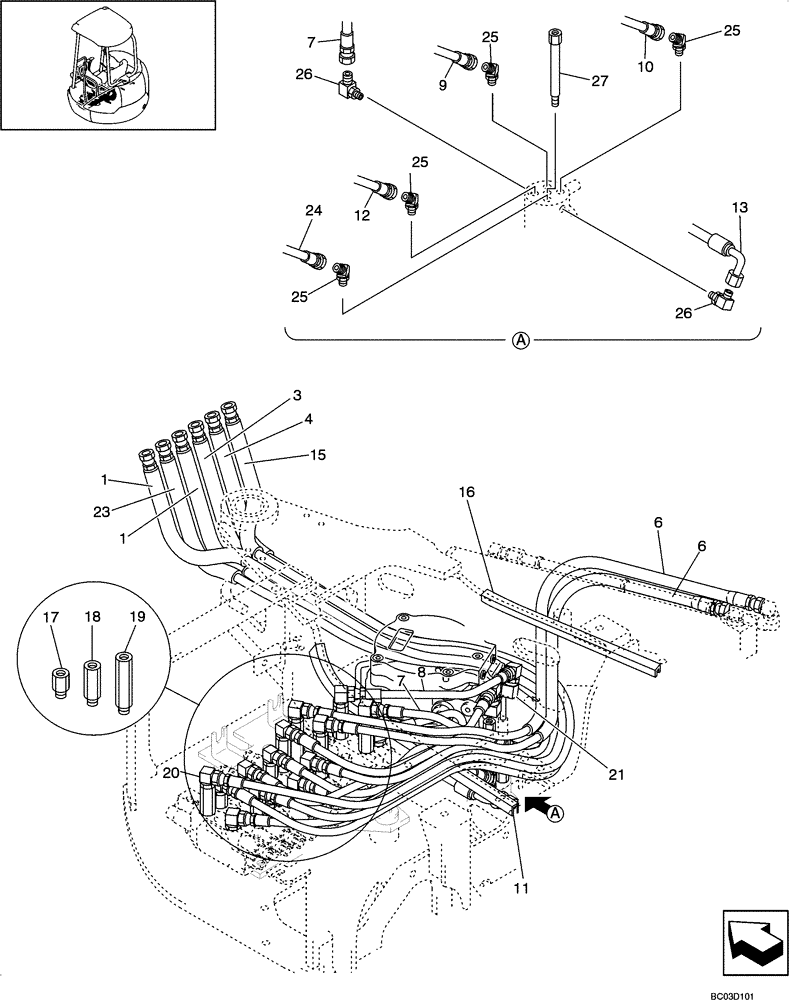

Запчасти Case CX31 (08-04[00]) - HYDRAULIC LINES - UPPER (08) - HYDRAULICS

1

PM03H0191DC

HOSE

Boom - Bucket

2шт.

3

PM03H01091DD

HOSE ASSY.

Bucket

1шт.

4

PM03H01091DE

HOSE ASSY.

Arm

1шт.

6

PM03H01097D2

HOSE ASSY.

Cylinder Swing

2шт.

7

HX25L06030DY

HOSE ASSY.

Motor Swing

2шт.

8

HX25L06036DY

HOSE ASSY.

Motor Swing

2шт.

9

HX35L06060DY

HOSE

Joint Swivel

1шт.

10

HX25L06064DY

HOSE ASSY.

Valve Control

1шт.

11

YN64H01068D4

RUBBER

1шт.

12

HX25L06056DY

HOSE

1шт.

13

HX35L06040DY

HOSE

1шт.

15

PM03H01091DA

HOSE ASSY.

Boom

1шт.

16

YN64H01068D3

RUBBER

1шт.

17

HH25R06006G1

HYD CONNECTOR

7шт.

18

HH25R06006G2

HYD CONNECTOR

2шт.

19

HH25R06006G4

HYD CONNECTOR

2шт.

20

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

18шт.

21

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

2шт.

23

PM03H01091D9

HOSE ASSY.

Arm

1шт.

24

HX25L06054DY

HOSE ASSY.

Valve Control

1шт.

25

HH45S06006G1

45 ELBOW

4шт.

26

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

2шт.

27

PW19H01006P1

ELEC CONNECTOR

1шт.
