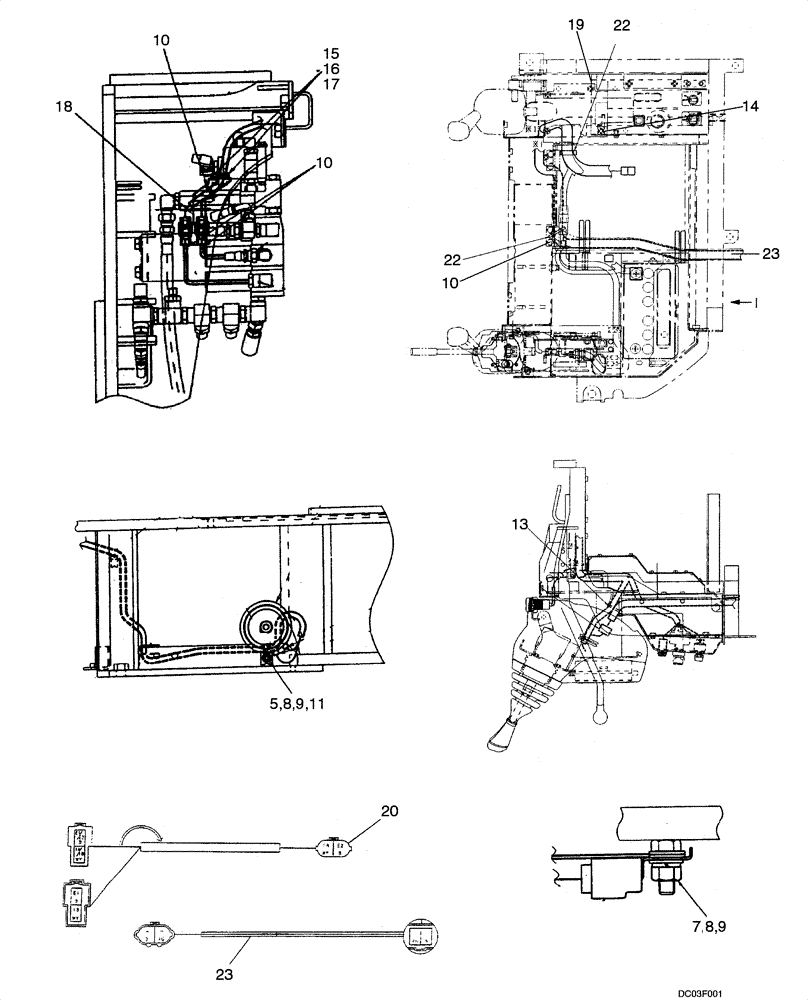

Запчасти Case CX31 (04-08[00]) - HARNESS, MAIN - CHASSIS, UPPERSTRUCTURE - CAB (04) - ELECTRICAL SYSTEMS

5

PH53S00001P1

HORN

1шт.

7

ZN18C08007

NUT

1шт.

8

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

3шт.

9

ZW26X08000

LOCK WASHER

3шт.

10

PY01P01043D5

CABLE TIE,301mm L

15шт.

11

ZS18C08016

SCREW,Hex, M8 x 16mm

2шт.

13

YN03E01001D4

CLIP,33mm L

1шт.

14

2432R233D3

CLIP

1шт.

15

ZS18C06014

SCREW,Hex, M6 x 14mm

2шт.

16

ZW16X06000

WASHER

2шт.

17

ZW26X06000

LOCK WASHER

2шт.

18

PM13E01073P1

PLATE

1шт.

19

PM22C01020D5

TRIM PANEL

2шт.

20

PM13E01074D1

HARNESS

1шт.

22

PY01P01043D3

CABLE TIE,188mm L

3шт.

23

PW13E01029P1

HARNESS

1шт.
