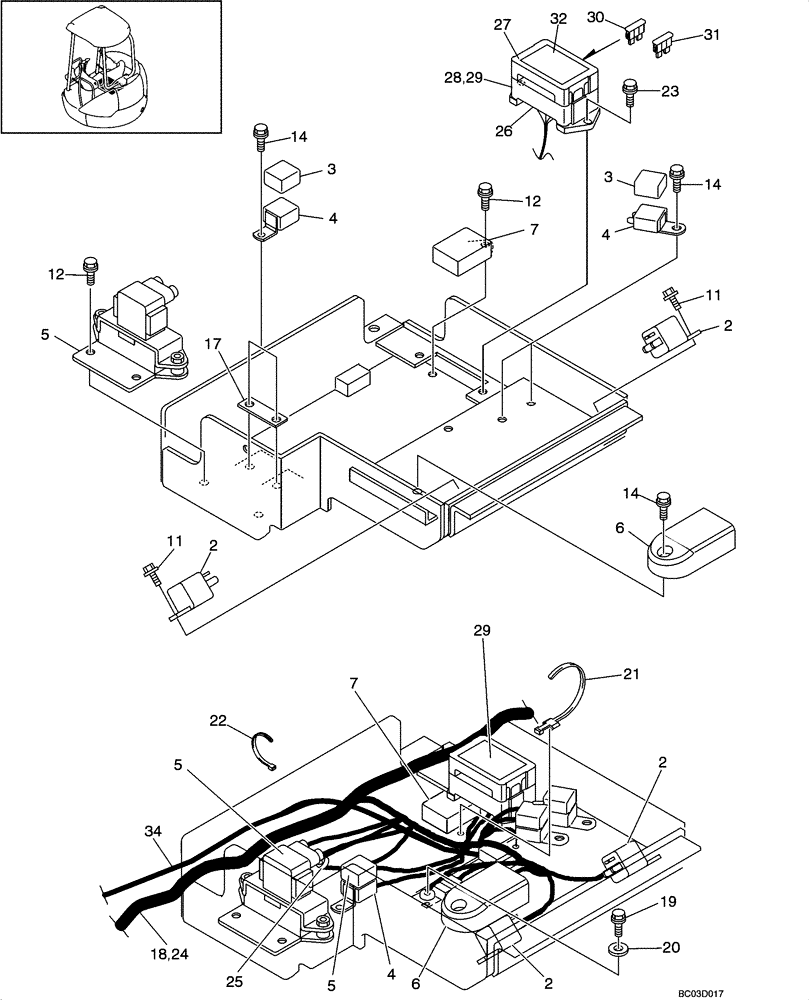

Запчасти Case CX31 (04-06[00]) - RELAY ASSY - CAB (04) - ELECTRICAL SYSTEMS

PW24E00017F6

RELAY

Incl. 1 - 34

1шт.

1

PW24E01026P1

BOX

1шт.

2

PH24S00001P1

RELAY,12V, 70amp

Battery & Engine Stop

2шт.

3

PM24S00001P1

RELAY

Decelator

3шт.

4

PA24E01001P1

RELAY,12V - 20amp

Charge Indicator

4шт.

5

PH24S00002P1

RELAY

Safety

1шт.

6

PA24S00002P3

RELAY,DC12V

SEQUENCE BOX ASSY.

1шт.

7

PH25S00002P1

TIMER

1шт.

11

ZM61C05012

BOLT

2шт.

12

ZM61C06012

BOLT

3шт.

14

ZM61C06020

BOLT

1шт.

17

PW24E01029P1

PLATE

2шт.

18

PW11E00007F6

HARNESS

Assy, Cab, Chassis, Incl. 19 - 34

1шт.

19

ZM61C06012

BOLT

1шт.

20

ZW16X06000

WASHER

1шт.

21

YN03E01001D5

CLIP

2шт.

22

2432Z290

CLIP

2шт.

23

ZM61C06016

BOLT

2шт.

24

PW14E01009P1

HARNESS

Cab, Chassis, Incl. 25 - 34

1шт.

25

NSS

NOT SOLD SEPARAT

Harness

1шт.

26

PM73E00004F6

FUSE

Incl. 27 - 33

1шт.

27

2479U1458S2

COVER

1шт.

28

2479U1458S1

BASE

1шт.

29

2479U1458S3

BLOCK

2шт.

30

2479R655S8

FUSE,10 Amp

3шт.

31

YN73E00001S022

FUSE,30 Amp

6шт.

32

PW73E01001P1

LABEL

1шт.

34

PH14E01006P1

HARNESS

1шт.
