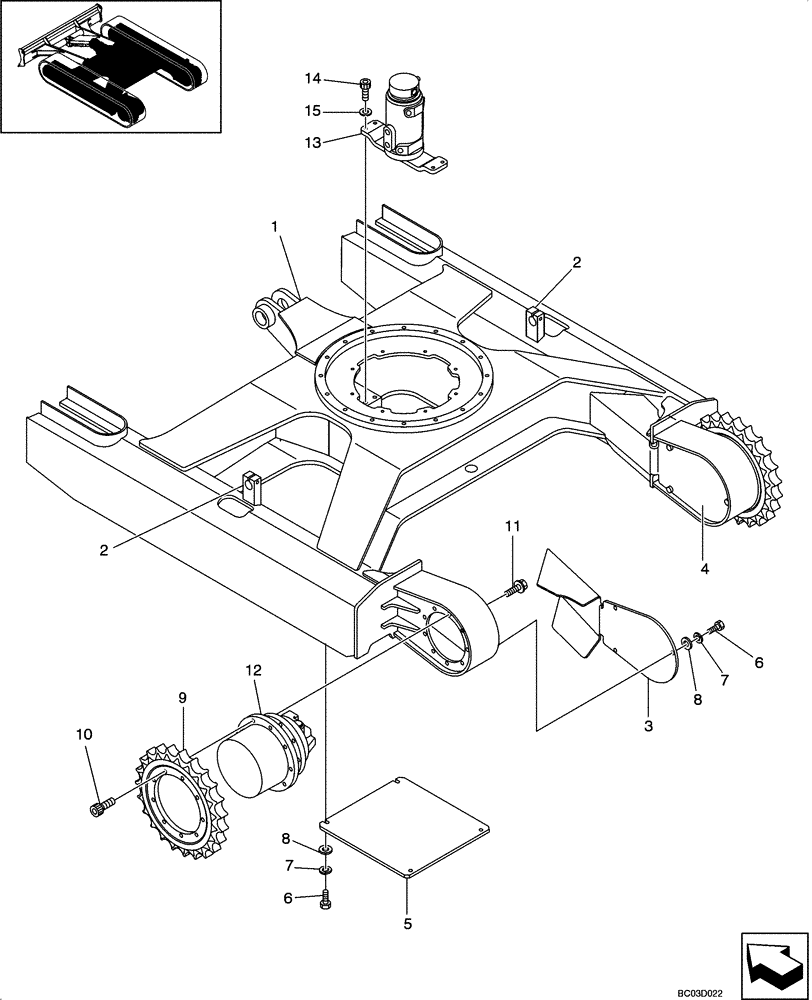

Запчасти Case CX31 (05-01[00]) - UNDERCARRIAGE (CX31 ASN PW10 - 22001) (11) - TRACKS/STEERING

1

PW02F00049P1

FRAME

1шт.

2

PW07F01055P1

SUPPORT

2шт.

3

PW01F01018P1

COVER

R.H.

1шт.

4

PW01F01019P1

COVER

L.H.

1шт.

5

PM01F01008P1

COVER

1шт.

6

ZS18C10016

SCREW,Hex, M10 x 16mm

10шт.

7

ZW26X10000

LOCK WASHER

10шт.

8

ZW16H10000

WASHER

10шт.

9

PW53D01001P1

SPROCKET

2шт.

10

ZS28C12040

SCREW,Hex Socket Head, M12 x 40mm

18шт.

11

PV17M01004P1

SCREW

18шт.

12

PW15V00018F3

HYDRAULIC MOTOR

See Figure 06 -02

2шт.

13

PW55V00015F1

JOINT ASSY.

See Figure 08 -38

1шт.

14

ZS18C12040

SCREW,Hex, M12 x 40mm

4шт.

15

ZW16X12000

WASHER

4шт.
