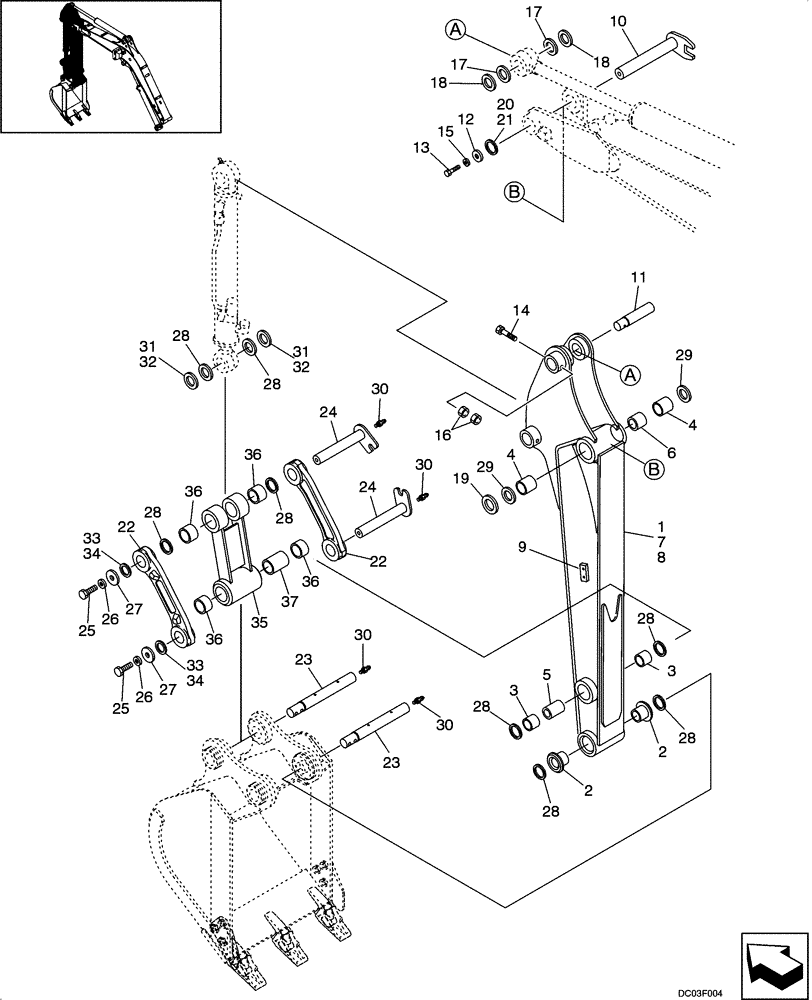

Запчасти Case CX31 (09-52[00]) - ARM ASSY (CX31 ASN PW10 - 22001) (09) - CHASSIS/ATTACHMENTS

PW12B00101F2

ARM ASSY.

Incl. 1 - 9

1шт.

1

PW12B00102F2

ARM

1шт.

2

PW12B01237P2

BUSHING,40mm ID x 82mm OD x 55mm L

2шт.

3

PW12B01209P2

BUSHING,45mm ID x 50mm OD x 31.5mm L

2шт.

4

PX12B01177P2

BUSHING,45mm ID x 55mm OD x 55mm L

2шт.

5

PW12B01208D1

COLLAR

1шт.

6

PX12B01016P1

COLLAR

1шт.

7

PW12B00107P1

ARM

Incl 8, 9

1шт.

8

PW12B00103P1

ARM

Incl 9

1шт.

9

PM12B01315P1

BLOCK

2шт.

10

PW12B01255P1

PIN

1шт.

11

PW12B01219P2

PIN

1шт.

12

PW12B01242P1

WASHER

1шт.

13

ZS18C16035

SCREW,Hex, M16 x 35mm

1шт.

14

HS18C10085G2

BOLT

1шт.

15

ZW16H16000

WASHER

1шт.

16

ZN18C10008

NUT

2шт.

17

PR02B01108P1

SHIM,0.5mm Thk

2шт.

18

PR02B01121D1

SHIM,47mm ID x 70mm OD x 0.9mm Thk

1шт.

19

PW02B01239P1

SHIM,0.5mm Thk

1шт.

20

PW12B01243D1

SHIM,0.5mm Thk

1шт.

21

PW12B01243D2

SHIM,0.9mm Thk

2шт.

22

PW12B01224P1

LINK

2шт.

23

PW12B01250P2

PIN

OD 35 x 280mm Long -- (Secures with Roll Pin PX61B01091P1)

2шт.

PX61B01091P1

PIN,10mm OD x 58mm L

Roll (Used to secures Pin PW12B01250P2), Not Shown

2шт.

25

ZS18C16030

SCREW,Hex, M16 x 30mm

2шт.

26

ZW16H16000

WASHER

2шт.

27

PW12B01216P1

WASHER

2шт.

28

PN54D01001D3

SEAL,40mm ID x 50mm OD x 4mm Thk

10шт.

29

2445R138D20

SEAL,45mm ID x 55mm OD x 4mm Thk

2шт.

30

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

6шт.

31

PR02B01107P1

SHIM,0.5mm Thk

2шт.

32

PR02B01123D1

SHIM,0.9mm Thk

2шт.

33

PB12B01013D2

SHIM

2шт.

34

PB12B01013D1

SHIM

1шт.

PW12B01231F3

LINK

Incl. 35 - 38

1шт.

35

PW12B01257P1

LINK

1шт.

36

PX12B01151P1

BUSHING,40mm ID x 50mm OD x 50mm L

2шт.

37

PW12B01208D2

COLLAR

1шт.

38

PW12B01209P2

BUSHING,45mm ID x 50mm OD x 31.5mm L

2шт.
