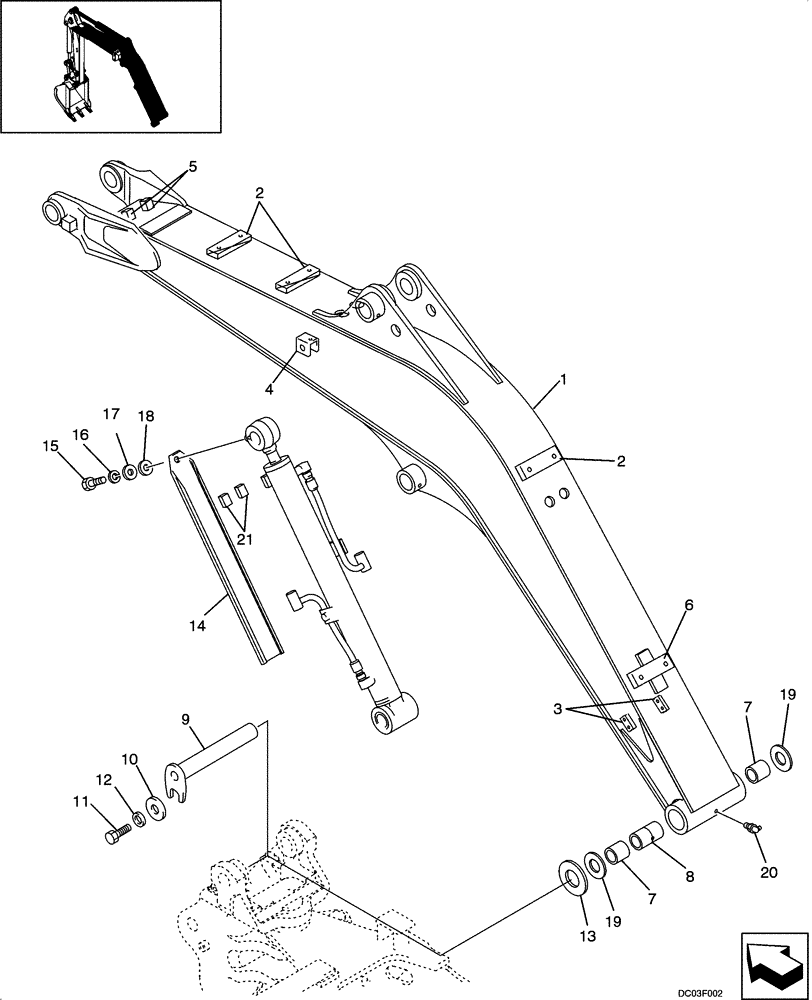

Запчасти Case CX31 (09-50[00]) - BOOM (CX31 ASN PW10 - 22001) (09) - CHASSIS/ATTACHMENTS

PW02B00102F1

BOOM

Incl. 1 - 8

1шт.

1

PW02B00101P1

BOOM

Incl. 2 - 6

1шт.

2

PM02B01266P1

BLOCK

3шт.

3

PM02B01260P1

BLOCK

2шт.

4

PH02B01097P1

PLATE

1шт.

5

PM02B01253P1

BLOCK

2шт.

6

PW02B01249P1

BLOCK

1шт.

7

PX02B01096P1

BUSHING

2шт.

8

PW02B01215P1

COLLAR

1шт.

9

PW02B01221P1

PIN

1шт.

10

2418T21137

WASHER

1шт.

11

ZS18C10025

SCREW,Hex, M10 x 25mm

1шт.

12

ZW26X10000

LOCK WASHER

1шт.

13

PW02B01239P1

SHIM,0.5mm Thk

1шт.

14

PW02B01254P1

COVER

1шт.

15

ZS18C08020

SCREW,Hex, M8 x 20mm

1шт.

16

ZW26X08000

LOCK WASHER

1шт.

17

2418T12753

WASHER

1шт.

18

PN03M01009D1

WASHER

1шт.

19

2445R138D20

SEAL,45mm ID x 55mm OD x 4mm Thk

2шт.

20

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

1шт.

21

PH02B01004P1

TUBE

2шт.
