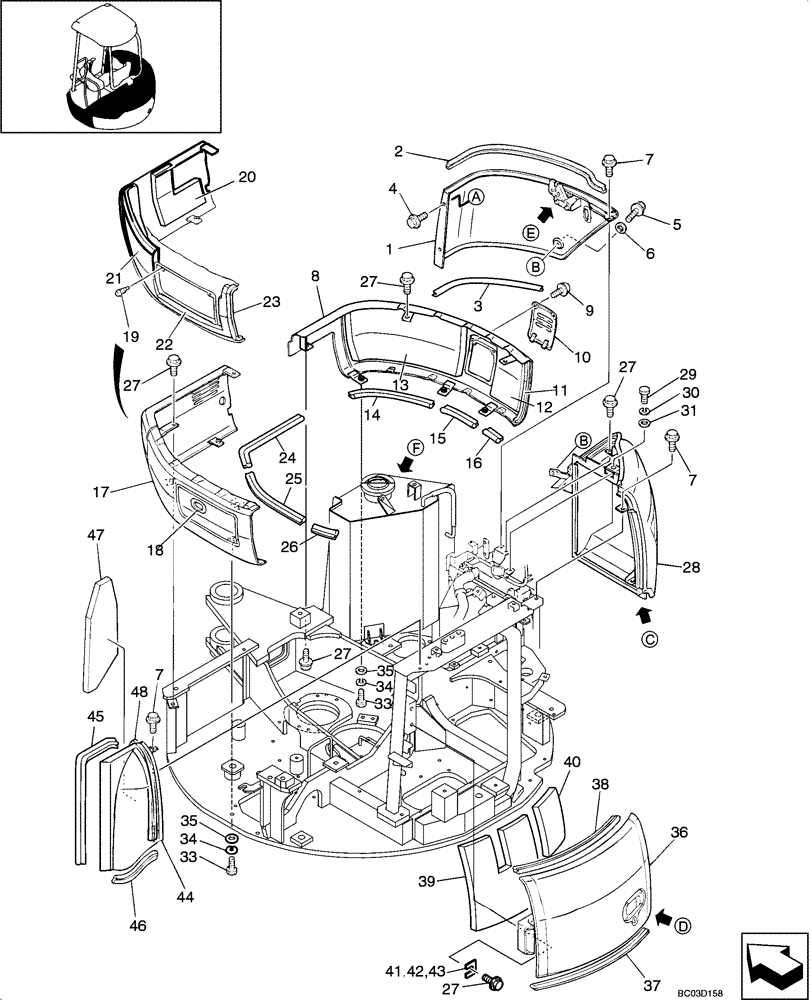

Запчасти Case CX31 (09-14[00]) - COVER - PANELS, CAB (09) - CHASSIS/ATTACHMENTS

PW21C01279F1

PANEL ASSY.

Incl. 1- 3

1шт.

1

PW21C01253P1

PANEL

1шт.

2

PH21C01021D5

WEATHERSTRIP

L=850

1шт.

3

PE21C01070D3

SEAL PROTECTION

L=600

1шт.

PM21C01283F1

LOCK ASSY

See Figure 09-15 (Part of PW21C01279F1) -- Not Shown

1шт.

PW21C01191F1

LOCK

(Part of PW21C01279F1) -- Not Shown

1шт.

ZM61C06016

BOLT

M06x1.0x16mm (Incls. Washer & Lockwasher), (Part of PW21C01279F1) -- Not Shown

3шт.

4

PA21C01133P1

BOLT

2шт.

5

PM21C01142P1

BOLT

1шт.

6

PH21C01148P1

WASHER

1шт.

7

YR21C01159P1

BOLT

3шт.

PW21C01282F1

PANEL ASSY.

INCL. 8 -16

1шт.

8

PW21C01281P1

COVER

1шт.

9

PA41C01006D2

BOLT

2шт.

10

PM21C01211P1

COVER

1шт.

11

PM21C01233P1

RUBBER

1шт.

12

PM21C01230P1

FOAM INSULATION

1шт.

13

PW21C01260P1

FOAM INSULATION

1шт.

14

PM22C01013D8

FOAM

1шт.

15

PM22C01013D1

WEATHERSTRIP

1шт.

16

PM22C01013DE

WEATHERSEAL STRIP

1шт.

PW21C01247F1

PANEL ASSY.

Incl. 17 - 26

1шт.

17

PW21C01243P1

COVER

1шт.

18

PM21C01255P2

GROMMET

1шт.

19

PM21C01253P1

RUBBER

2шт.

20

PW21C01258P1

FOAM INSULATION

1шт.

21

PW21C01321P1

FOAM

1шт.

22

PM21C01228P1

FOAM INSULATION

1шт.

23

PM21C01233P1

RUBBER

1шт.

24

PM22C01013DA

WEATHERSEAL STRIP

1шт.

25

PM22C01013D4

WEATHERSEAL STRIP

1шт.

26

PM22C01013DB

WEATHERSEAL STRIP

1шт.

27

ZM32C10025

BOLT

8шт.

28

PW21C01287F1

PANEL ASSY.

See Figure 09 -15

1шт.

29

ZS18C08020

SCREW,Hex, M8 x 20mm

2шт.

30

ZW26X08000

LOCK WASHER

2шт.

31

YR21C01223P1

WASHER

1шт.

32

YR21C01161P1

WASHER,9mm ID x 22mm OD x 2.3mm Thk

1шт.

33

ZS18C10035

SCREW,Hex, M10 x 35mm

6шт.

34

ZW26X10000

LOCK WASHER

6шт.

35

2418T12346

WASHER

ID 11 x OD 30 x Th 3.2mm

6шт.

PW22C00012F1

COVER

Incl. 37 - 40, See Figure 09 -15

1шт.

36

PW21C01109P1

COVER

1шт.

37

YN21C01712D1

WEATHERSTRIP

1шт.

38

PM21C01091DC

WEATHERSTRIP

1шт.

39

PW22C01015P2

FOAM INSULATION

1шт.

40

PW22C01016P1

FOAM INSULATION

1шт.

41

PY21C01042D1

SPACER

1шт.

42

PY21C01042D2

SPACER

1шт.

43

PY21C01042D3

SPACER

1шт.

PW21C01250F1

COVER

Incl. 44 - 48

1шт.

44

PW21C01225P1

COVER

1шт.

45

PW22C0103D6

WEATHERSTRIP

1шт.

46

PM22C01136D8

WEATHERSTRIP

1шт.

47

PW21C01271P1

FOAM

1шт.

48

PY21C01007DH

WEATHERSTRIP

1шт.
