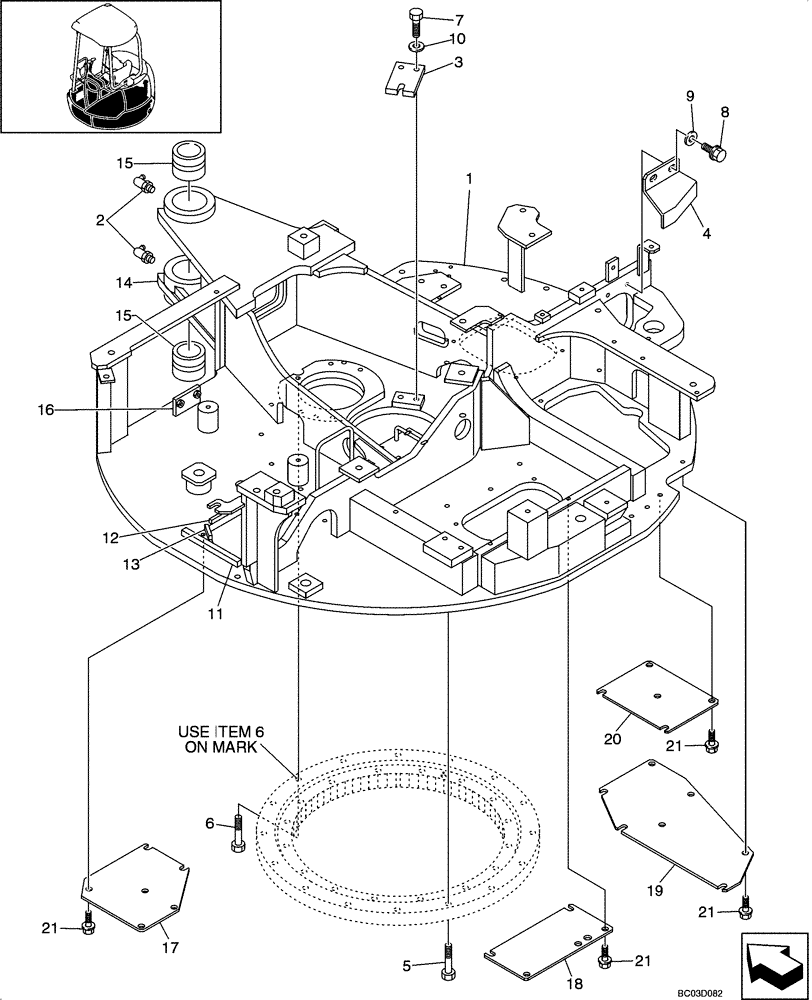

Запчасти Case CX31 (09-02[00]) - TURNTABLE - ACCESS COVERS (CX31 ASN PW10 - 22001) (09) - CHASSIS/ATTACHMENTS

1

PW52F00019F1

TURNTABLE ASSY., Incl. 2 - 16

1шт.

1

PW52F00019F2

ASSEMBLY

TURNTABLE ASSY., Incl. 2 - 16

1шт.

1

PX52F00021P1

Upper Frame

1шт.

2

ZG91U02000

LUBE NIPPLE

2шт.

3

PR52F01044P1

STOP

1шт.

4

PX52F01137P1

COVER

1шт.

5

ZS18C12060

SCREW,Hex, M12 x 60mm

15шт.

6

HS58C12060G1

BOLT

1шт.

7

ZS18C12050

SCREW,Hex, M12 x 50mm

2шт.

9

ZS16C10000

WASHER

2шт.

10

ZW16X12000

WASHER

2шт.

11

PM24E01043D4

RUBBER

1шт.

12

PM24E01043D5

RUBBER

1шт.

13

PM24E01043D6

RUBBER

1шт.

PX52F01165F1

Bracket Assembly Incl 14 - 15

1шт.

14

PX52F01164P1

BRACKET

1шт.

15

PW52F01151P1

BUSHING

2шт.

16

PW52F01191P1

BRACKET

1шт.

PW24C00003F1

Cover Assembly, Under, Incl 17 - 21

1шт.

17

PM24C01010P1

COVER

1шт.

18

PW24C01028P2

COVER

1шт.

19

PW24C01029P1

COVER

1шт.

20

PW24C01030P1

COVER

1шт.

21

ZM22C10020

BOLT

19шт.
