(08-86[00]) - MOUNTING - BOOM AND ARM CYLINDERS (CX31 ASN PX10 - 22001)

Запчасти Case CX31 (08-86[00]) - MOUNTING - BOOM AND ARM CYLINDERS (CX31 ASN PX10 - 22001) (08) - HYDRAULICS

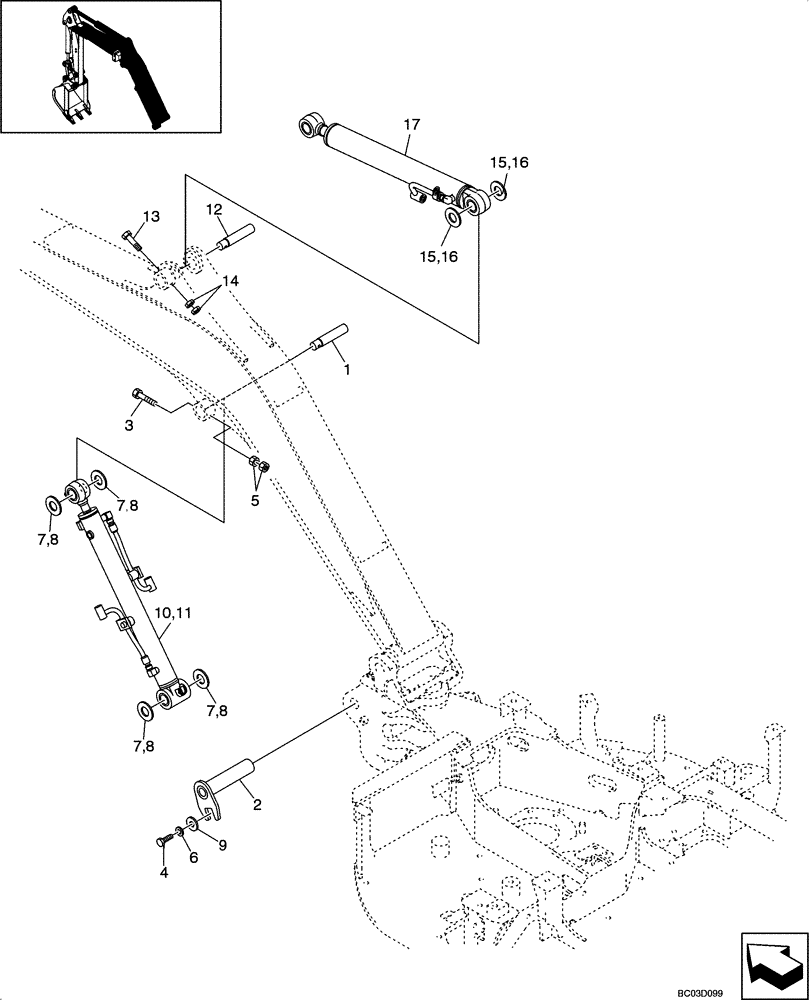

Схема запчастей Case CX31 - (08-86[00]) - MOUNTING - BOOM AND ARM CYLINDERS (CX31 ASN PX10 - 22001) (08) - HYDRAULICS
13
16
8
10
8
7
12
8
3
7
7
7
15
17
14
6
8
5
4
15
11
16
9
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PW02B01220P2

PIN

1шт.

2

PW02B01256P2

PIN

1шт.

3

HS18C10085G2

BOLT

1шт.

4

ZS18C10025

SCREW,Hex, M10 x 25mm

1шт.

5

ZN18C10008

NUT

2шт.

6

ZW26X10000

LOCK WASHER

1шт.

7

PR02B01108P1

SHIM,0.5mm Thk

4шт.

8

PR02B01121D1

SHIM,47mm ID x 70mm OD x 0.9mm Thk

3шт.

9

2418T21137

WASHER

1шт.

10

PW01V00043F2

CYLINDER ASSY.

Boom Canopy Only, See Figure 08 -76

1шт.

11

PW01V00044F2

CYLINDER ASSY.

Cab Only, See Fig. 08-77

1шт.

12

PW02B01220P2

PIN

1шт.

13

HS18C10085G2

BOLT

1шт.

14

ZN18C10008

NUT

2шт.

15

PR02B01108P1

SHIM,0.5mm Thk

2шт.

16

PR02B01121D1

SHIM,47mm ID x 70mm OD x 0.9mm Thk

2шт.

17

PW01V00051F2

CYLINDER ASSY.

Arm, See Figure 08 -80

1шт.
