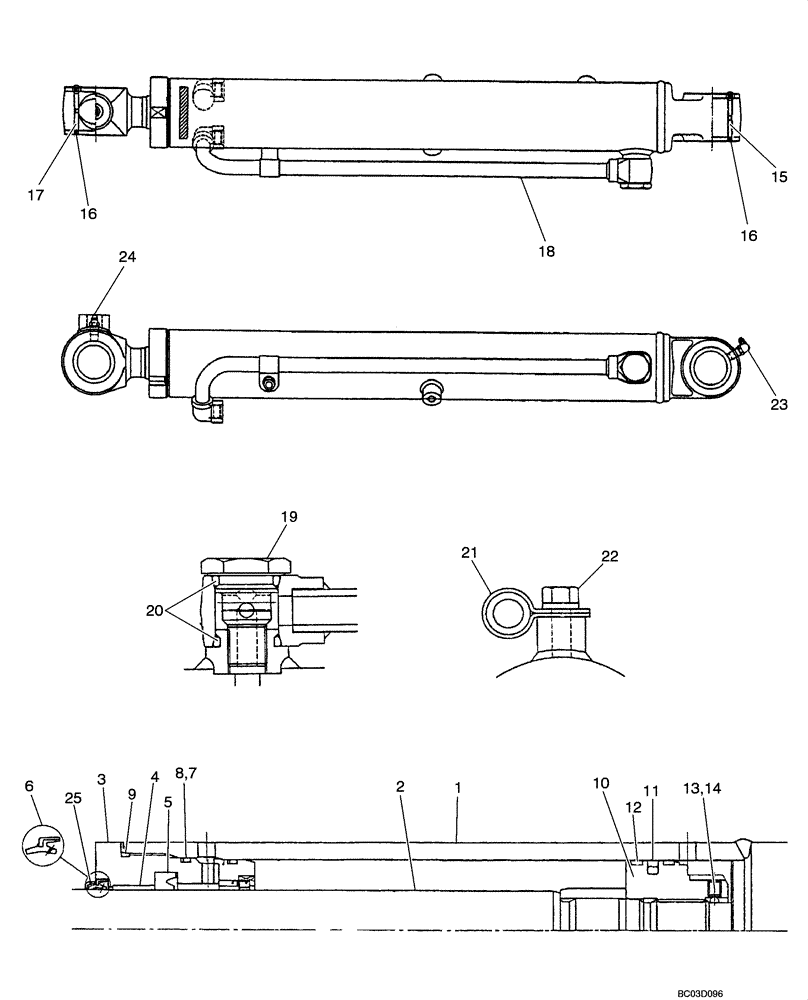

Запчасти Case CX31 (08-82[00]) - CYLINDER ASSY, BUCKET (08) - HYDRAULICS

PW01V00046F1

CYLINDER

Incl. 1 - 25

1шт.

1

NSS

NOT SOLD SEPARAT

Cylinder Tube Assy.

1шт.

2

NSS

NOT SOLD SEPARAT

Piston Rod Assy.

1шт.

3

PW01V00046S003

CYLINDER HEAD

1шт.

4

PW01V00012S004

BUSHING

1шт.

5

PW01V00012S005

RING,37mm ID x 55mm OD x 11mm Thk

1шт.

6

PV01V00023S006

WIPER,33mm ID x 47mm OD x 8mm Thk

1шт.

7

ZD12G06000

O-RING,59.40mm ID x 65.60mm OD x 3.10mm

1шт.

8

PW01V00046S008

BACK-UP RING,62mm ID x 68mm OD x 2.5mm Thk

1шт.

9

ZD11G06500

O-RING,64.40mm ID x 70.60mm OD x 3.10mm

1шт.

10

PW01V00046S010

PISTON

1шт.

11

2438U1289S16

RING,48mm ID x 58mm OD x 5mm Thk

1шт.

12

PW01V00046S012

RING,51mm ID x 67mm OD x 3mm Thk

2шт.

13

2438U988S18

SET SCREW

1шт.

14

2438U988S19

BALL

1шт.

15

PV12B01186D1

BUSHING

1шт.

16

PX01V00012S020

SEAL

4шт.

17

PW01V00046S017

BUSHING

1шт.

18

PW01V00046S018

PIPE ASSY.

1шт.

19

PH01V00017S027

PLUG

1шт.

20

ZD12P02290

O-RING

2шт.

21

PH01V00017S030

HOLDER

1шт.

22

PH01V00014S027

BOLT

1шт.

23

ZG91U02000

LUBE NIPPLE

2шт.

25

PW01V00046S025

CAP

1шт.

PW01V00046R100

REPAIR KIT

Piston Side, Incl. 1, 15

1шт.

PW01V00046R200

REPAIR KIT

Rod Side, Incl. 2, 17

1шт.

PW01V00046R300

REPAIR KIT

Incl. 5 - 9,11, 12, 20

1шт.
