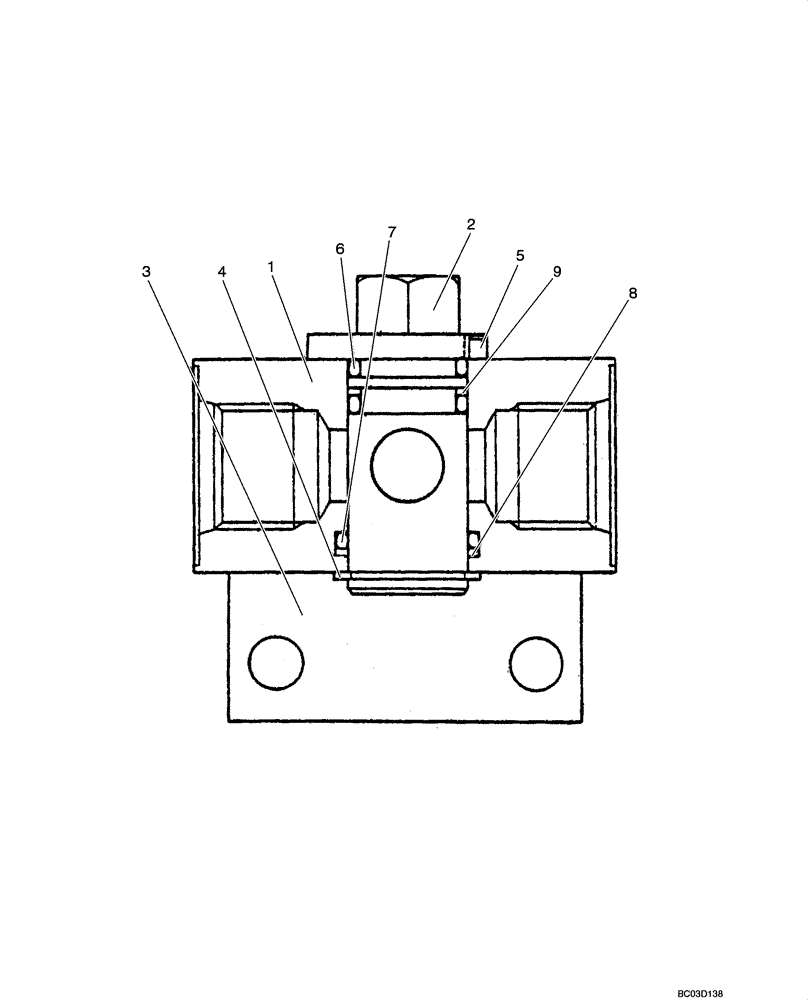

Запчасти Case CX31 (08-72[00]) - VALVE ASSY - STOP (08) - HYDRAULICS

PF25V00001F1

VALVE

STOP, Incl. 1 - 9

1шт.

1

PF25V00001S001

BODY

Valve, (with 1/2" Pipe Thread)

1шт.

2

PF25V00001S002

SHAFT

1шт.

3

PF25V00001S003

PLATE

1шт.

4

ZR16X03000

SNAP RING

1шт.

5

ZD26D05010

SPRING

SPRING

1шт.

6

ZD12G02500

O-RING,24.40mm ID x 30.60mm OD x 3.10mm

2шт.

7

ZD12G03000

O-RING,29.40mm ID x 35.60mm OD x 3.10mm

1шт.

8

ZD75G03000

BACK-UP RING

1шт.

9

ZD75G02500

BACK-UP RING

1шт.
