Запчасти Case CX31 (08-63[00]) - VALVE ASSY - PRESSURE RELIEF (08) - HYDRAULICS

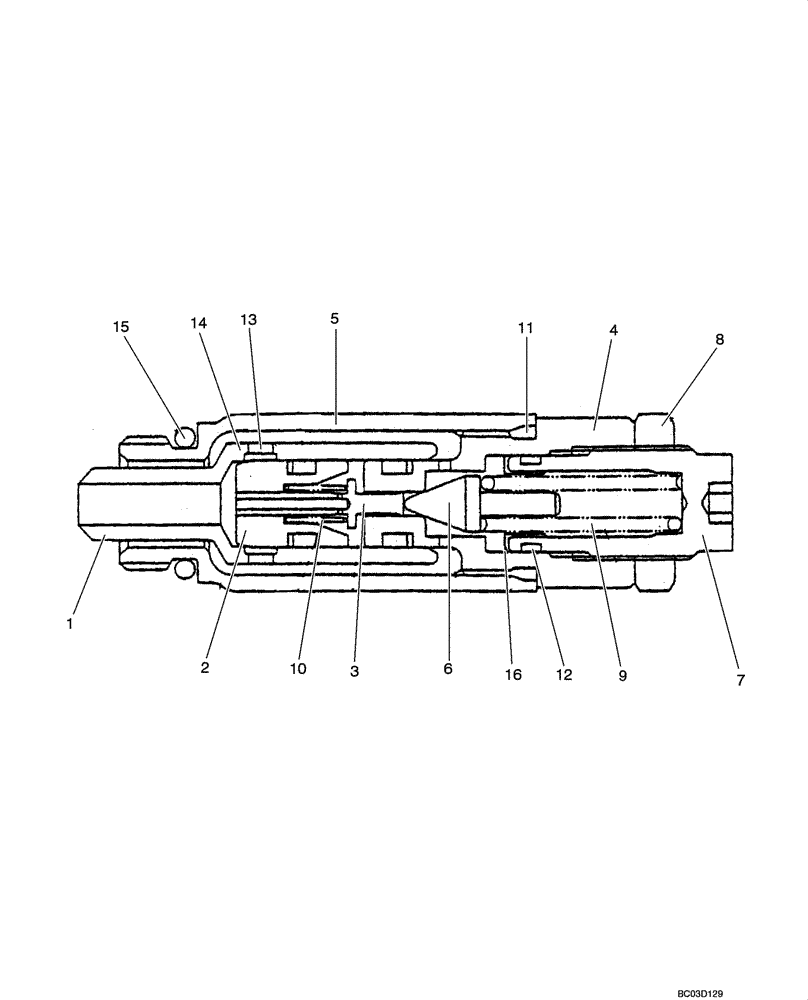

Схема запчастей Case CX31 - (08-63[00]) - VALVE ASSY - PRESSURE RELIEF (08) - HYDRAULICS
13
14
3
11
12
15
16
9
6
7
10
5
8
2
4
1

Артикул

Название

Примечание

Количество

PM22V00005F1

BLEEDER VALVE

PRESSURE RELIEF, Incl. 1 - 16; PM22V00005F1 THROUGH PM22V00005FE ARE THE SAME PRESSURE RELIEF VALVE WITH DIFFERENT PRESSURE SETINGS.SEE PARTS AFTER NUMBER 16 FOR PRESSURE SETTINGS.

1шт.

1

NSS

NOT SOLD SEPARAT

Socket

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Control

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

NSS

NOT SOLD SEPARAT

Body

1шт.

6

NSS

NOT SOLD SEPARAT

Valve, Control

1шт.

7

NSS

NOT SOLD SEPARAT

Screw, Adjust

1шт.

8

NSS

NOT SOLD SEPARAT

Nut

1шт.

9

NSS

NOT SOLD SEPARAT

Spring

1шт.

10

NSS

NOT SOLD SEPARAT

Spring

1шт.

11

ZD12P01500

O-RING

1шт.

12

2436R612S13

O-RING

1шт.

13

PH22V00003S013

O-RING

2шт.

14

PH22V00003S014

BACK-UP RING

2шт.

15

ZD12P01400

O-RING

1шт.

16

NSS

NOT SOLD SEPARAT

Guide

1шт.

PM22V00005F1

BLEEDER VALVE

SET PRESSURE 22.6MPa at 20.0 L/min

1шт.

PM22V00005F2

VALVE

SET PRESSURE 17.7MPa at 17.2 L/min

1шт.

PM22V00005F3

VALVE PRESSURE RELIE

SET PRESSURE 25.5MPa at 5.0 L/min

1шт.

PM22V00005F4

VALVE PRESSURE RELIE

SET PRESSURE 27.5MPa at 5.0 L/min

1шт.

PM22V00005F5

VALVE PRESSURE RELIE

SET PRESSURE 22.6MPa at 24.0 L/min

1шт.

PM22V00005F6

VALVE

SET PRESSURE 17.7MPa at 20.6 L/min

1шт.

PM22V00005F7

VALVE

SET PRESSURE 22.6MPa at 31.1 L/min

1шт.

PM22V00005F8

VALVE PRESSURE RELIE

SET PRESSURE 17.7MPa at 24.2 L/min

1шт.

PM22V00005F9

VALVE

SET PRESSURE 22.6MPa at 34.8 L/min

1шт.

PM22V00005FA

VALVE

SET PRESSURE 19.6MPa at 25.2 L/min

1шт.

PM22V00005FB

VALVE

SET PRESSURE 13.7MPa at 42.0 L/min

1шт.

PM22V00005FC

VALVE

SET PRESSURE 4.4MPa at 42.0 L/min

1шт.

PM22V00005FD

VALVE

SET PRESSURE 20.6MPa at 24.6 L/min

1шт.

Выбрано товаров: 30
