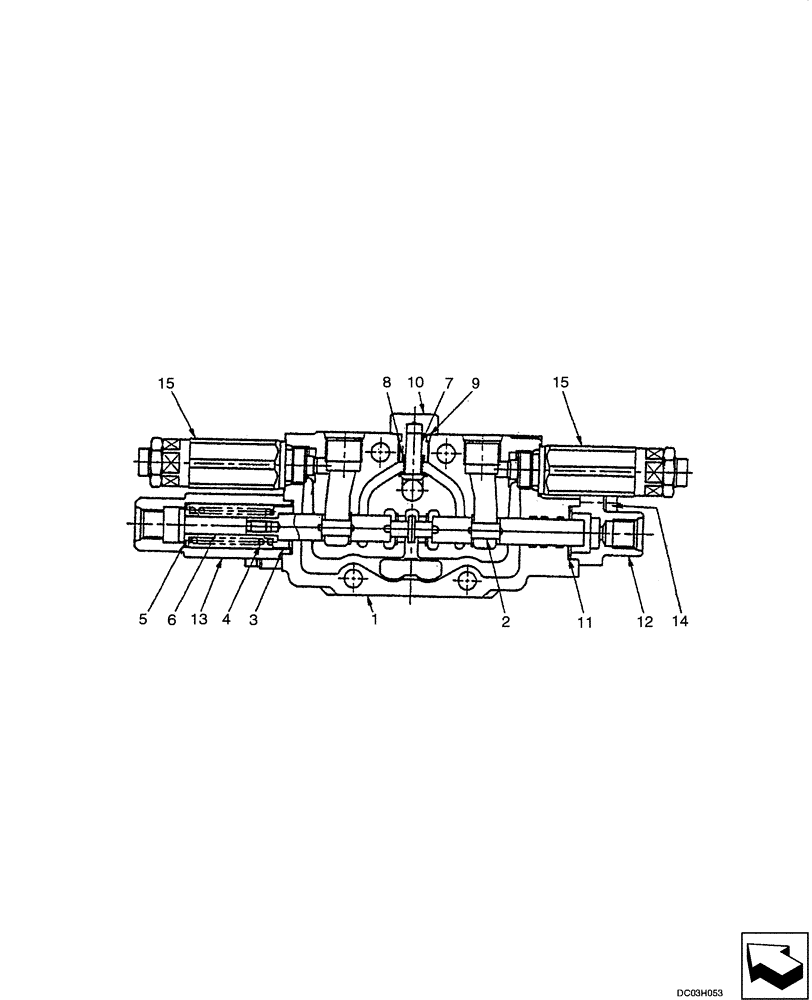

Запчасти Case CX25 (08-37[00]) - SERVICE VALVE (08) - HYDRAULICS

PV30V00040F1

CONTROL VALVE

VALVE ASSY., Incl. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

NSS

NOT SOLD SEPARAT

Seat

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Seat

1шт.

6

NSS

NOT SOLD SEPARAT

Spool

1шт.

7

PH30V00003S006

POPPET

1шт.

8

PH30V00003S007

SPRING

1шт.

9

ZD12P01100

O-RING

1шт.

10

PH30V00003S009

PLUG

1шт.

11

PW30V01008S011

O-RING

2шт.

12

PM30V00021S012

COVER

1шт.

13

PM30V00021S013

COVER

1шт.

14

PM30V00021S014

SCREW

4шт.

15

PM22V00005F3

VALVE PRESSURE RELIE

See Figure 08-46

2шт.

PV30V00040R100

REPAIR KIT, Incl. 2 - 8

1шт.
