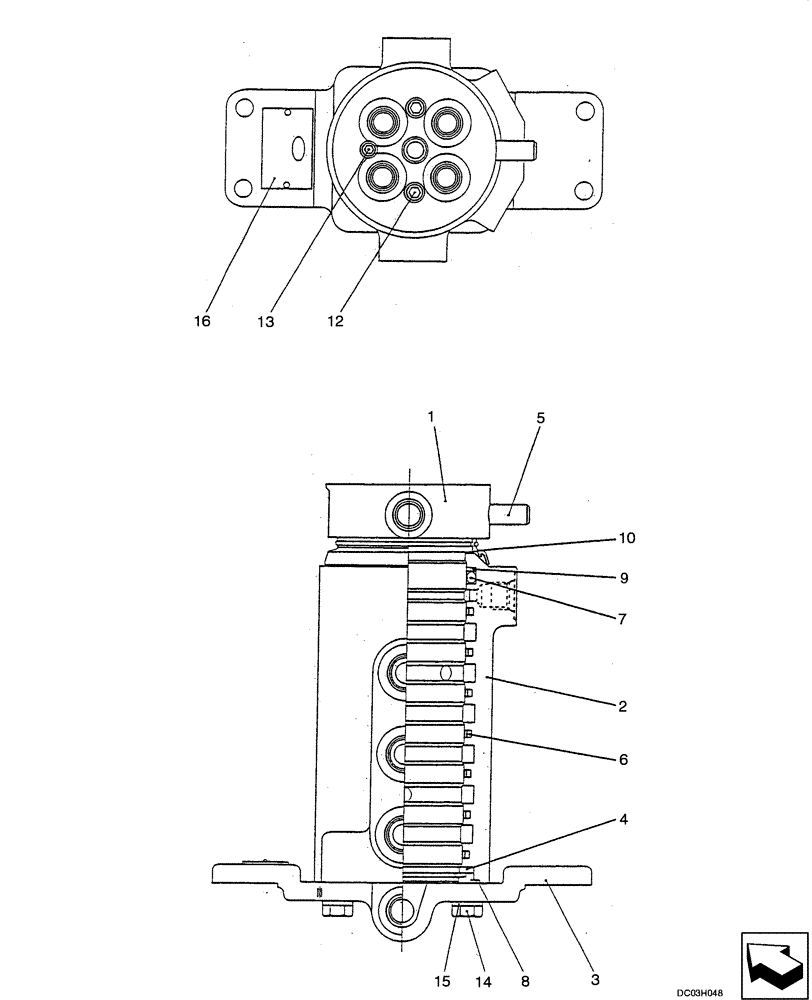

Запчасти Case CX25 (08-31[00]) - HYDRAULICS - JOINT, SWIVEL CENTER (08) - HYDRAULICS

PM55V00012F1

JOINT ASSY.

Incl. 1 - 16

1шт.

1

PV55V00001S001

SHAFT

1шт.

2

PV55V00001S002

ROTOR

1шт.

3

PM55V00012S003

FLANGE

FLANGE

1шт.

4

PV55V00001S004

RING

1шт.

5

PV55V00001S005

PIN

1шт.

6

PV55V00001S006

SEAL

7шт.

7

ZD12P06000

O-RING

1шт.

8

PV55V00001S008

O-RING

1шт.

9

ZD75P06000

BACK-UP RING

RING, Back Up

1шт.

10

PV55V00001S010

SEAL

1шт.

11

ZR16X05500

RING

1шт.

12

ZE82T02000

PLUG

2шт.

13

PV5500001S013

PLUG

1шт.

14

ZS23C08020

SCREW,Hex Socket Head, M8 x 20mm

4шт.

15

ZW22K0800

LOCK, Washer

4шт.

16

NSS

NOT SOLD SEPARAT

Name Plate

1шт.
