(08-29[00]) - MOTOR ASSY, SWING (PV15V00014F1)

Запчасти Case CX25 (08-29[00]) - MOTOR ASSY, SWING (PV15V00014F1) (08) - HYDRAULICS

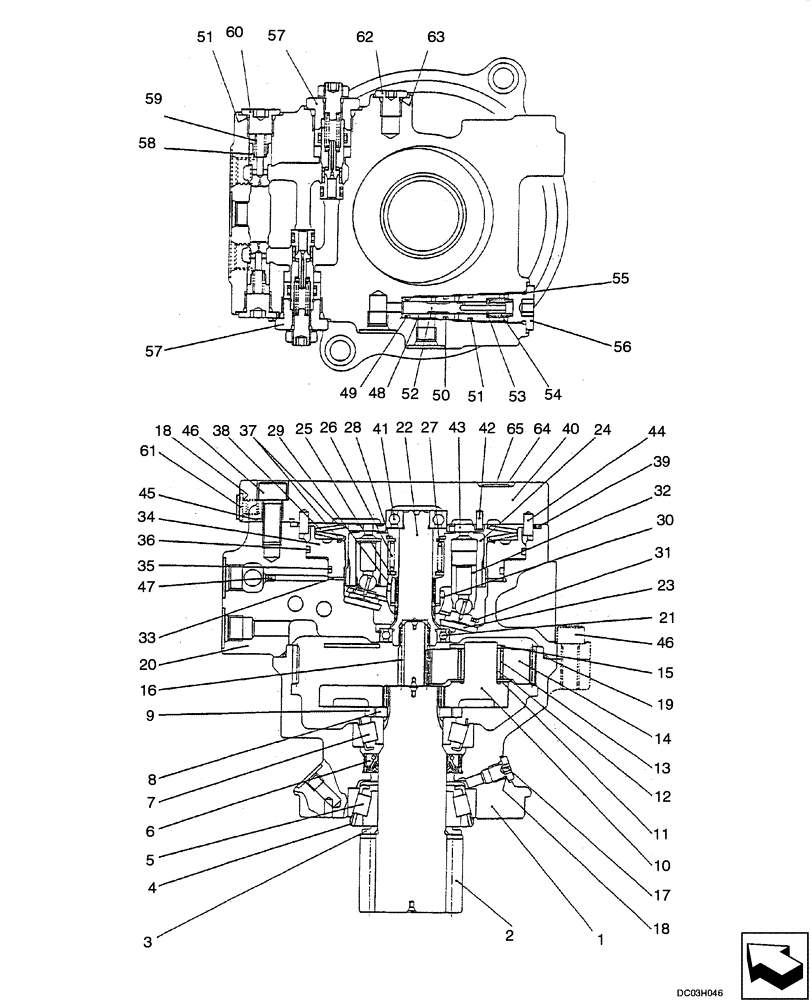

Схема запчастей Case CX25 - (08-29[00]) - MOTOR ASSY, SWING (PV15V00014F1) (08) - HYDRAULICS
31
62
28
11
3
42
47
65
16
55
8
41
53
9
45
63
43
26
60
14
52
34
46
39
17
59
15
23
33
21
1
25
12
61
18
49
6
24
51
5
50
54
7
57
35
58
44
13
30
20
56
38
37
4
27
2
36
29
40
64
19
22
18
48
57
10
51
32
46
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft, Pinon

1шт.

3

NSS

NOT SOLD SEPARAT

Collar

1шт.

4

PM15V00014S004

PLATE

PLATE

1шт.

5

NSS

NOT SOLD SEPARAT

Bearing, Roller

1шт.

6

YN15V00005S121

OIL SEAL

OIL SEAL

1шт.

7

NSS

NOT SOLD SEPARAT

Bearing

1шт.

8

NSS

NOT SOLD SEPARAT

Plate

2шт.

9

PM15V00014S009

COLLAR

COLLAR

1шт.

10

PM15V00014S010

HOLDER

HOLDER

1шт.

11

PX15V01004S112

THRUST WASHER

WASHER, Thrust

3шт.

12

PX15V01004S113

RACE

RACE, Inner

3шт.

13

PX15V01004S114

NEEDLE BEARING

3шт.

14

PM15V00014S014

GEAR

GEAR, Planetary

3шт.

15

PM15V00014S015

THRUST PLATE

PLATE, Thrust

1шт.

16

PM15V00014S016

GEAR

GEAR, Drive

1шт.

17

LQ15V00007S015

PLUG

PLUG

1шт.

18

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

3шт.

19

PM15V00014S019

O-RING

O-RING

1шт.

21

PX15V01001S111

BEARING

BEARING, Ball

1шт.

22

PM15V00014S022

SHAFT

SHAFT

1шт.

23

PX15V01001S109

THRUST PLATE

PLATE, Thrust

1шт.

24

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

25

2441U942S36

COLLAR

1шт.

26

PX15V01001S115

SPRING

1шт.

27

PX15V01001S116

WASHER

1шт.

28

ZR26X03700

SNAP RING

1шт.

29

PX15V01001S113

PIN

Pin

3шт.

30

2441U942S41

HOLDER

1шт.

31

PM15V00014S031

PLATE

PLATE

1шт.

32

NSS

NOT SOLD SEPARAT

Piston Assy.

9шт.

33

PM15V00014S033

PLATE

DISK

1шт.

34

PM15V00014S034

BRAKE

BRAKE, Piston

1шт.

35

ZD12G11000

O-RING,109.40mm ID x 115.60mm OD x 3.10mm

1шт.

36

ZD12G13500

O-RING,134.40mm ID x 140.60mm OD x 3.10mm

1шт.

37

PM15V00014S037

SPRING SEAT

SEAT, Spring

2шт.

38

PM15V00014S038

SPRING-DISC

SPRING, Coned Disk

1шт.

39

PX15V00005S027

O-RING

1шт.

40

PM15V00014S040

COVER

COVER

1шт.

41

2441U942S48

BALL BEARING

1шт.

42

2441U901S19

PIN

1шт.

43

PX15V01001S105

PLATE

PLATE, VALVE

1шт.

44

PM15V00014S044

PIN

PIN

2шт.

45

ZD12P02100

O-RING,2.4mm Thk x 20.8mm ID, 90 Duro

2шт.

46

ZS23C12030

SCREW,Hex Socket Head, M12 x 30mm

7шт.

47

2441U942S61

ORIFICE

ORIFICE

1шт.

48

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

49

ZD12P01090

O-RING

1шт.

50

ZD12P01200

O-RING

1шт.

51

ZD12P01400

O-RING

3шт.

52

NSS

NOT SOLD SEPARAT

Spool

1шт.

53

2436R1749S11

WASHER

WASHER

1шт.

54

PM15V00014S054

SPRING

SPRING

1шт.

55

ZD12P01800

O-RING

1шт.

56

2441U792S141

PLUG

1шт.

58

PX15V01005S202

CHECK VALVE

VALVE, CHECK

2шт.

59

PX15V01005S203

SPRING

SPRING

2шт.

60

2441U802S58

PLUG

2шт.

61

LQ15V00007S015

PLUG

PLUG

2шт.

62

2441U984S35

PLUG

1шт.

63

ZD12P01100

O-RING

1шт.

64

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

65

NSS

NOT SOLD SEPARAT

Screw

2шт.

PM15V00014R100

REPAIR KIT

Incl 18, 19, 35, 39, 45, 49, 50, 51, 55, 63

1шт.

PM15V00014R200

REPAIR KIT

Incl. 24, 32

1шт.

PM15V00014R300

REPAIR KIT

Incl. 1 - 9

1шт.

PM15V00014R400

REPAIR KIT

Incl. 48 - 52

1шт.
