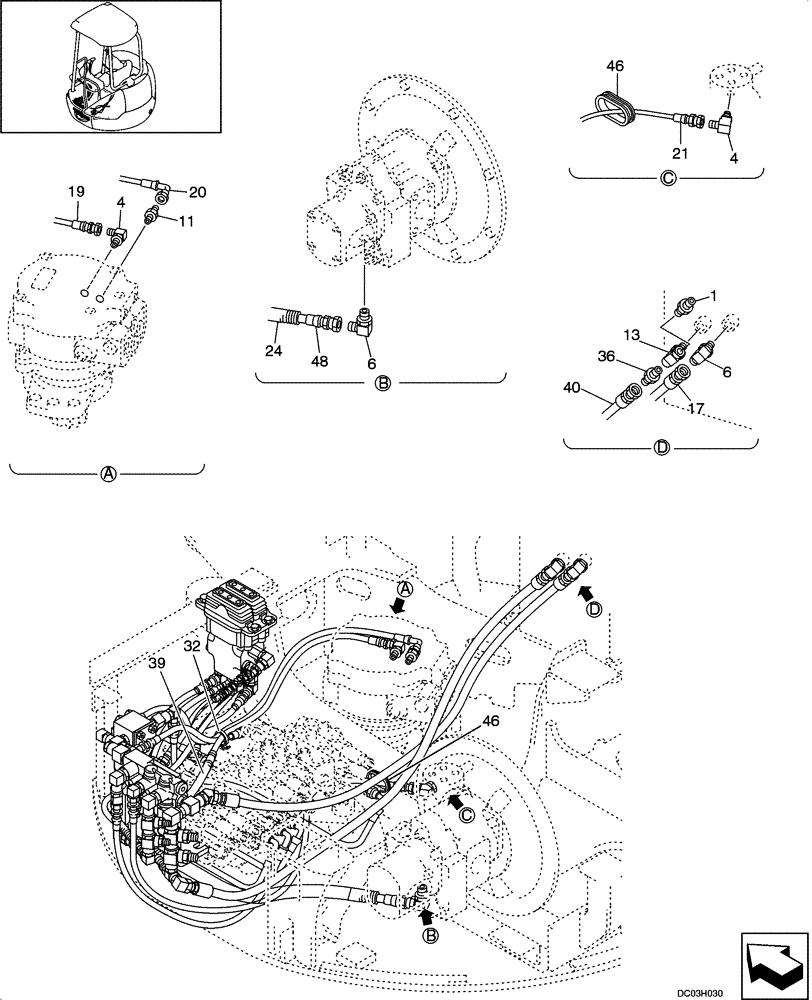

Запчасти Case CX25 (08-13A[00]) - HYDRAULICS - PILOT CONTROL LINES, SWING - TRAVEL ALARM (08) - HYDRAULICS

1

HH25S04006G1

90 ELBOW

2шт.

4

HH35S04004G1

90 ELBOW

8шт.

6

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

5шт.

11

HH25S04004G1

HYD CONNECTOR

3шт.

13

YN64H01048P1

TEE,90 Degree, PF 3/8" x PF 3/8", O-Ring

3шт.

21

HX23L03084DX

HOSE ASSY.

1шт.

24

PU13E01010DK

TUBE

1шт.

32

PY01P01043D3

CABLE TIE,188mm L

1шт.

36

HH25S06006G1

HYD CONNECTOR

3шт.

39

2418R676D3

TUBE

1шт.

40

HX22L06115DY

HOSE ASSY.

1шт.

46

PA32H01022P1

GROMMET

GROMMET

1шт.

48

HX23L06064DY

HOSE

1шт.
