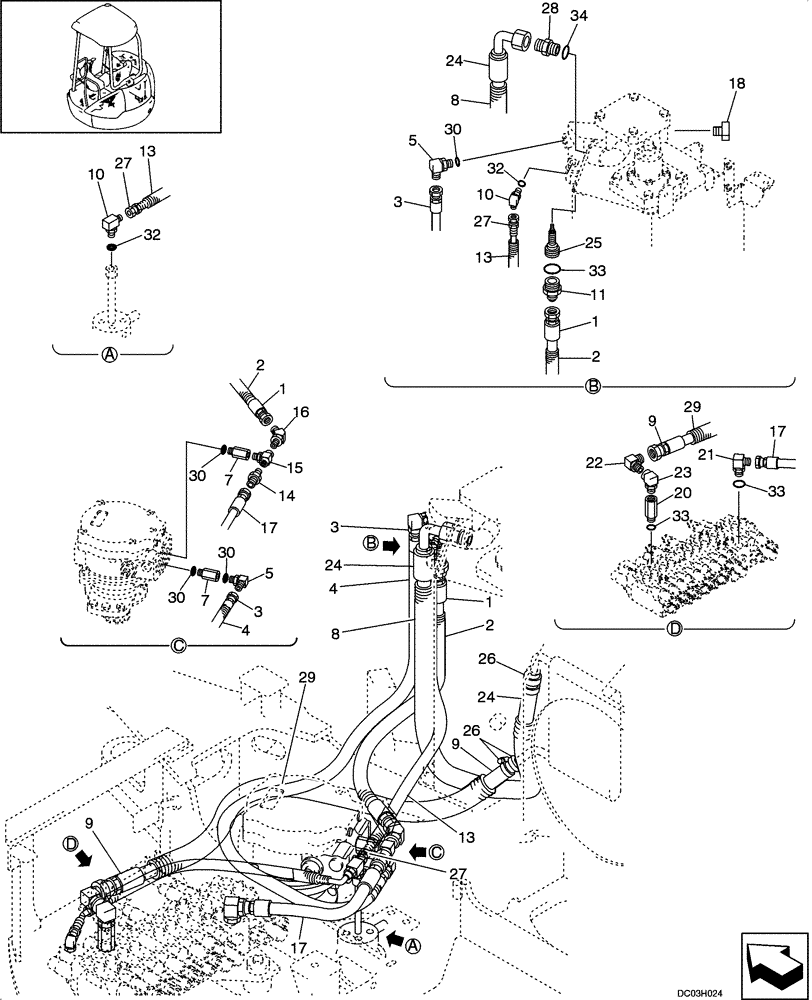

Запчасти Case CX25 (08-06[00]) - HYDRAULIC LINES - RETURN (NIBBLER & BREAKER) (08) - HYDRAULICS

2

YN20M01046D5

PROTECTIVE SLEEVE,22.10mm ID x 27.00mm OD x 350.00mm

1шт.

3

HX22L06130DY

HOSE ASSY.

1шт.

4

2418Z1333D8

PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1100mm Length

1шт.

5

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

Incl. 30

2шт.

7

2444Z3711

HYD CONNECTOR

Incl. 30

2шт.

8

YN20M01094DL

TUBE

1шт.

10

HH35S04004G1

90 ELBOW

Incl. 31

2шт.

13

PU13E01010DM

TUBE

TUBE

1шт.

14

HH25S08006G1

HYD CONNECTOR

1шт.

15

YN64H01048P1

TEE,90 Degree, PF 3/8" x PF 3/8", O-Ring

1шт.

16

HH45S08006G1

45 ELBOW

1шт.

18

ZE72X08000

PLUG

Only for Standard Machines

1шт.

20

HH25R08008G4

HYD CONNECTOR

Incl. 33

1шт.

21

HH35S08008G1

90 ELBOW

Incl. 33

1шт.

22

HH35S12008G1

ELBOW

1шт.

23

2444Z3715

90 ELBOW

1шт.

25

PW21V00003F1

VALVE

1шт.

26

ZC16X02000

CLIP

4шт.

28

HH25S12012G1

HYD CONNECTOR

Incl. 34

1шт.

30

ZD12P01400

O-RING

3шт.

31

ZD12P01100

O-RING

1шт.

32

ZD12P02900

O-RING

1шт.

33

ZD12P01800

O-RING

2шт.

34

ZD12P02400

O-RING

1шт.
