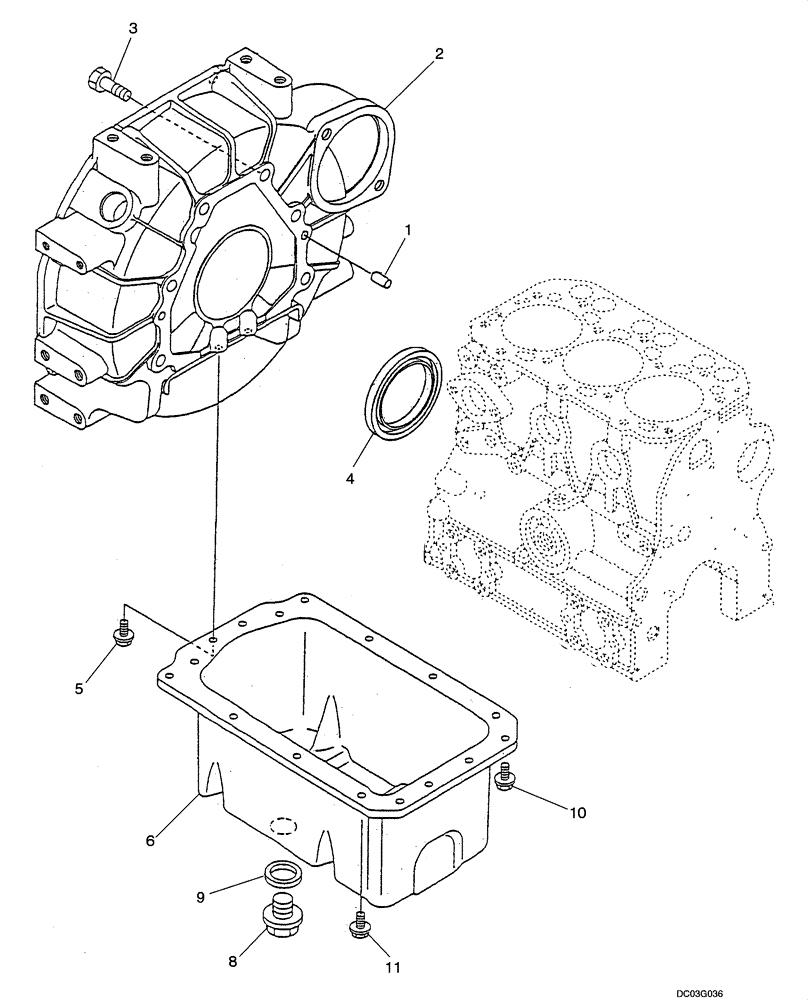

Запчасти Case CX25 (02-18[00]) - FLYWHEEL HOUSING AND OIL PAN (02) - ENGINE

YANMAR DIESEL ENGINE

1шт.

3TNE74 - NYBB

1шт.

1

VV12910001580

PIN,M8 x 16mm

8 x 16 mm

2шт.

2

VV11962401600

HOUSING

HOUSING, Flywheel

1шт.

3

VV26206100252

BOLT,M10 x 25mm

M10 x 25 mm

6шт.

4

VV12408502220

GASKET

Use VV97777001212 Liquid Gasket on both sides

1шт.

5

VV26106060102

BOLT,M6 x 10mm

M6 x 10 mm

2шт.

6

VV11963601780

PAN ASSY.

OIL PAN ASSY., Incl. 8, 9, Use VV97777001212 Liquid Gasket on Engine side

1шт.

8

VV11964001640

DRAIN PLUG,M22

1шт.

9

VV22190220002

SEAL,21.75mm ID x 30mm OD x 2.5mm Thk

1шт.

10

VV16106060122

BOLT M6 x 12 mm

4шт.

11

VV16106060102

BOLT M6 x 10 mm

10шт.
