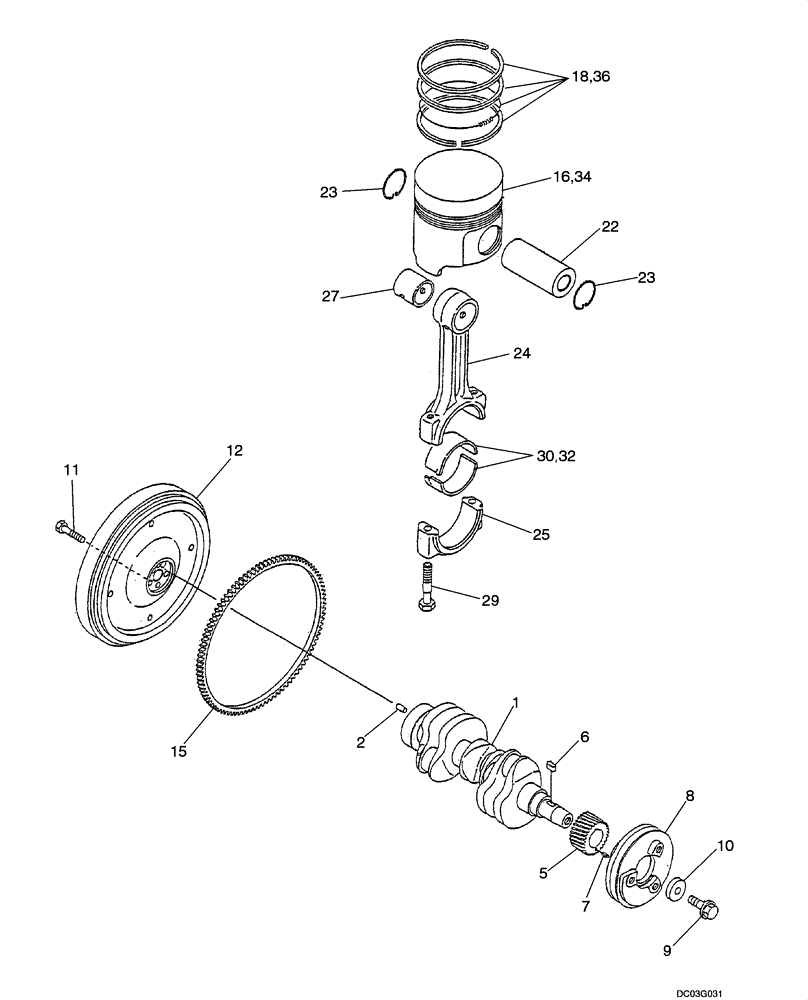

Запчасти Case CX25 (02-17[00]) - CRANKSHAFT AND PISTON (02) - ENGINE

1

VV11962421700

CRANKSHAFT

CHRANKSHAFT ASSY., Incl. 2 - 6

1шт.

2

VV12910001580

PIN,M8 x 16mm

8 x 16 mm

1шт.

5

VV11962421200

GEAR

GEAR, Crankshaft

1шт.

6

VV22512040120

KEY

KEY 4 x 12 mm

1шт.

7

VV22351030010

PIN

SPRING PIN 3 x 10 mm

1шт.

8

VV11926621651

PULLEY

V - PULLEY

1шт.

9

VV11962121680

BOLT

BOLT M12 x 1, 25 mm, Flange

1шт.

10

VV11962021941

WASHER

WASHER

1шт.

11

VV12111121501

BOLT

5шт.

12

VV11962421570

FLYWHEEL

FLYWHEEL ASSY., Incl. 15

1шт.

15

VV11986521600

GEAR

1шт.

16

VV11962422082

PISTON ASSY

PISTON ASSY., Incl. 18

3шт.

18

VV11962322500

PISTON RING SET

RING SET

3шт.

23

VV22252000210

CIRCLIP

CIRCLIP

6шт.

24

VV71962023100

ROD ASSY.

ROD ASSY., Connecting, Incl. 25 - 30

3шт.

25

NSS

NOT SOLD SEPARAT

Carrier Bearing

3шт.

27

VV11962023910

BUSHING

BUSHING, Piston Pin

3шт.

29

VV10522523200

BOLT

BOLT, Rod

6шт.

30

VV71962023600

BEARING LINER

BEARING, Crankpin

3шт.

32

VV71962023610

BEARING

BEARING, Pin Undersize = 0, 25 mm

3шт.

34

VV11962422900

PISTON ASSY

PISTON ASSY., Oversize = 0, 25 mm

3шт.

36

VV11962322950

RING

RING COMP., Oversize 0, 25 mm

3шт.
