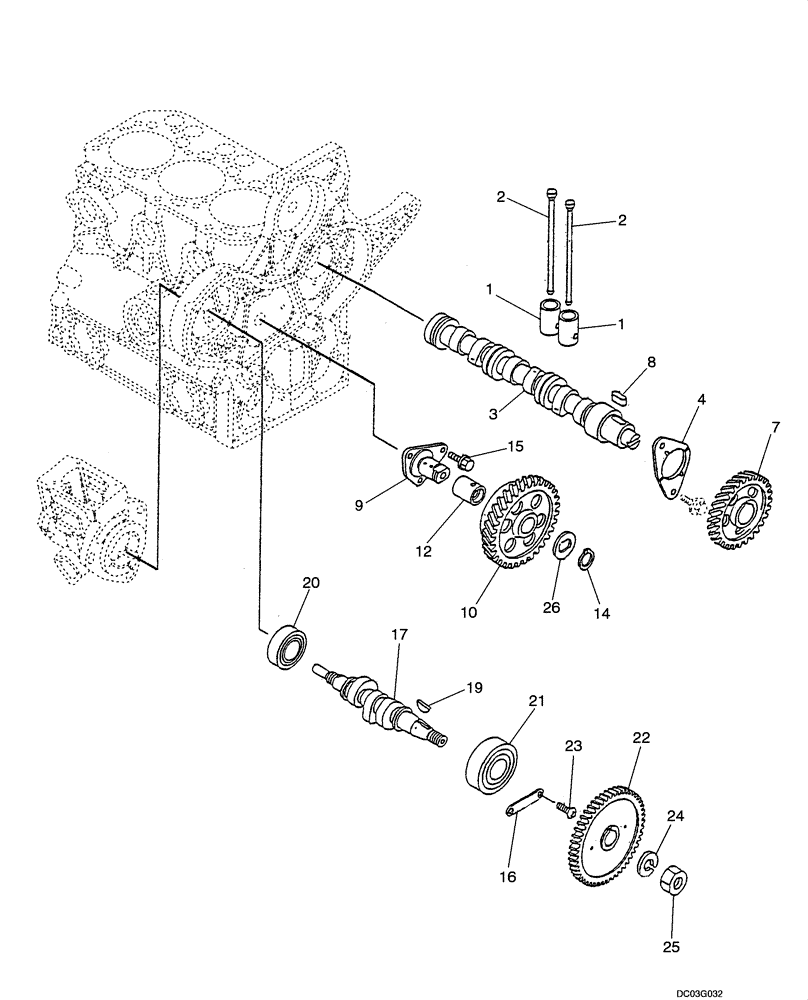

Запчасти Case CX25 (02-15[00]) - CAMSHAFT AND DRIVING GEAR (02) - ENGINE

YANMAR DIESEL ENGINE

1шт.

3TNE74 - NYBB

1шт.

1

VV11962014200

TAPPET

TAPPET

6шт.

2

VV11962014401

PUSH ROD

ROD, Push

6шт.

3

VV11962914580

CAMSHAFT

CAMSHAFT ASSY., Incl. 4 - 8

1шт.

4

VV11962002450

THRUST BEARING

BEARING, Thrust

1шт.

7

VV11962014100

GEAR

GEAR, Camshaft

1шт.

8

VV22512040120

KEY

KEY 4 x 12 mm

1шт.

9

VV11926625050

IDLE SHAFT

SHAFT, Idle Gear

1шт.

10

VV11962025102

IDLER GEAR

GEAR WITH BUSHING, Idle, Incl. 12

1шт.

12

VV11962025912

BUSHING

BUSHING

1шт.

14

VV22242000200

CIRCLIP

CIRCLIP

1шт.

15

VV26106060122

BOLT,M6 x 12mm

BOLT M6 x 12 mm

3шт.

16

VV11926601900

RETAINER

REATINER

1шт.

17

VV11926614200

CAM

CAM ASSY, Fuel Injection Pump, Incl 19 - 21

1шт.

19

VV12271051090

KEY

1шт.

20

VV24101060034

BEARING

BALL BEARING

1шт.

21

VV24102063034

BEARING

BALL BEARING

1шт.

22

VV11962425900

GEAR

GEAR, Fuel Injection Pump

1шт.

23

VV26557060102

SCREW,M6 x 10mm

SCREW 6 x 10 mm

2шт.

24

VV22217120000

SPRING

1шт.

25

VV26716120002

NUT,M12

1шт.

26

VV11966025022

RETAINER

RETAINER, Idle Gear

1шт.
