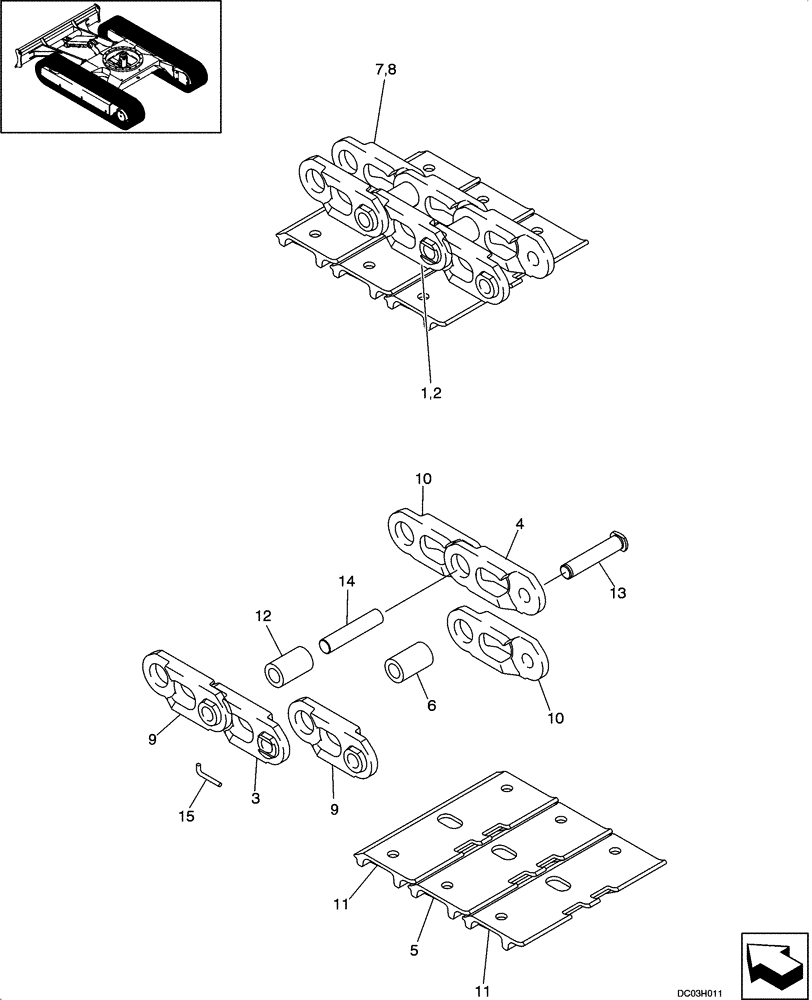

Запчасти Case CX25 (05-03[00]) - SHOE, TRACK (11) - TRACKS/STEERING
![Схема запчастей Case CX25 - (05-03[00]) - SHOE, TRACK (11) - TRACKS/STEERING](https://partsell.ru/storage/images/casece/173804.png)
8
7
4
3
10
2
6
9
13
9
15
12
1
11
10
11
5
14
№
Артикул
Название
Примечание
Количество
1
PM60D00017F1
TRACK SHOE
Incl. 2 - 6
1шт.
2
PM60D00019F1
SHOE
SHOE, Master, Incl. 3 - 5
1шт.
3
PM62D01003P1
TRACK LINK
Master (Left Hand)
1шт.
4
PM62D01004P1
TRACK LINK
Master (Right Hand)
1шт.
5
PM60D00015P1
PLATE
Master, Shoe
1шт.
6
PM62D01007P1
BUSHING
1шт.
7
PM60D00018F1
SHOE
SHOE ASSY., Incl 8 - 12
38шт.
8
PM60D00020F1
SHOE
SHOE ASSY., Incl. 9 - 11
1шт.
9
PM62D00002P1
TRACK LINK
Track (Left Hand)
1шт.
10
PM62D00003P1
TRACK LINK
Track (Right Hand)
1шт.
11
PM60D00015P1
PLATE
Track, Shoe
1шт.
12
PM62D01007P1
BUSHING
1шт.
13
PM62D01006P1
PIN,18.93mm OD x 97.5mm L
Master
1шт.
14
PM62D01005P1
PIN,19.2mm OD x 92.5mm L
Track
38шт.
15
PM62D01008P1
PIN,5mm OD
Master
1шт.
Выбрано товаров: 15
