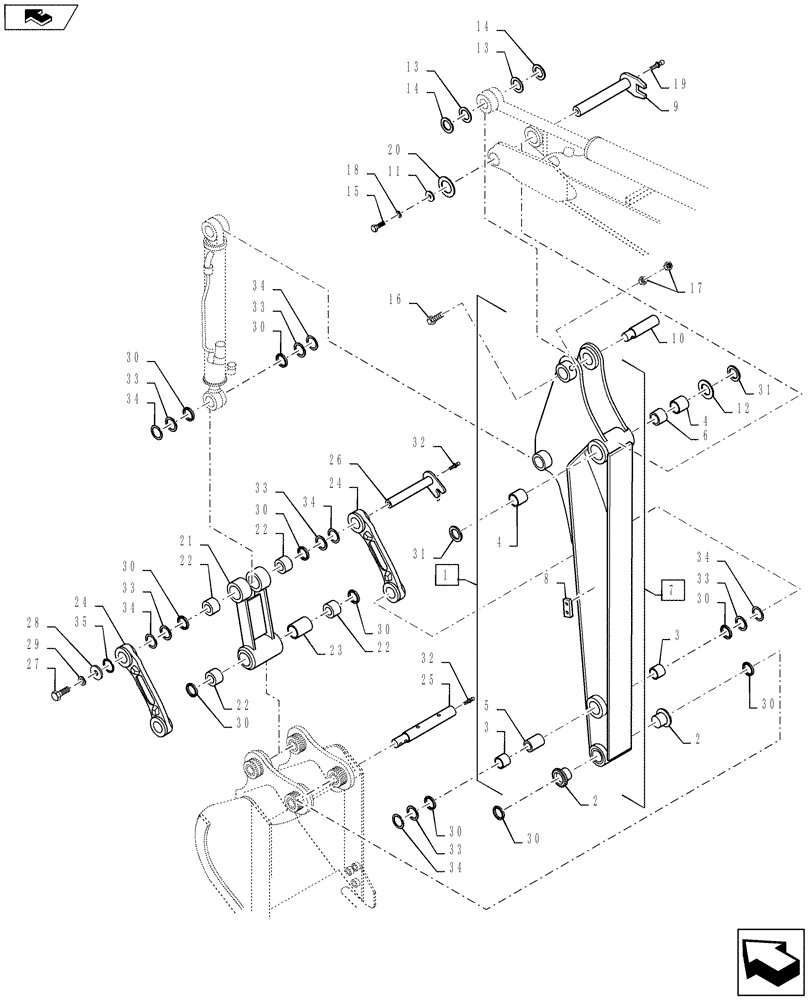

Запчасти Case CX25 (09-47[00]) - ARM ASSEMBLY (09) - CHASSIS/ATTACHMENTS

2

PM12B01258P1

BUSHING,35mm ID x 72mm OD x 39mm L

2шт.

3

PM12B01229P1

BUSHING,35mm ID x 45mm OD x 30mm L

2шт.

4

PM12B01203P1

BUSHING,40mm ID x 50mm OD x 40mm L

2шт.

5

PV12B01068P1

BUSHING,37.5mm ID x 42.7mm OD x 52mm L

1шт.

6

PM12B01262P1

COLLAR

1шт.

7

NSS

NOT SOLD SEPARAT

Arm, Incl. 8

1шт.

8

PM12B01315P1

BLOCK

2шт.

9

PM12B01278P1

PIN

PIN

1шт.

11

PM12B01226P1

WASHER

1шт.

12

PM12B01250P1

SHIM,0.5mm Thk

1шт.

13

PR02B01107P1

SHIM,0.5mm Thk

1шт.

14

PR02B01123D1

SHIM,0.9mm Thk

2шт.

15

ZS18C16035

SCREW,Hex, M16 x 35mm

1шт.

16

HS18C10080G3

BOLT

1шт.

17

ZN18C10008

NUT

2шт.

18

ZW16H16000

WASHER

1шт.

19

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

20

PB12B00013D1

SHIM (t=0, 5)

3шт.

22

PM12B01229P1

BUSHING,35mm ID x 45mm OD x 30mm L

4шт.

23

PV12B01068P1

BUSHING,37.5mm ID x 42.7mm OD x 52mm L

1шт.

25

PM12B01292P1

PIN

2шт.

27

ZS18C16030

SCREW,Hex, M16 x 30mm

2шт.

28

PM12B01226P1

WASHER

2шт.

29

ZW16H16000

WASHER

2шт.

30

PN54D01001D2

SEAL,35mm ID x 45mm OD x 4mm Thk

10шт.

31

PN54D01001D3

SEAL,40mm ID x 50mm OD x 4mm Thk

2шт.

32

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

4шт.

33

PR02B01122D1

SHIM,0.9mm Thk

2шт.

34

PR02B01109P1

SHIM,0.5mm Thk

2шт.

35

PB02B01012D1

SHIM,0.5mm Thk

14шт.
