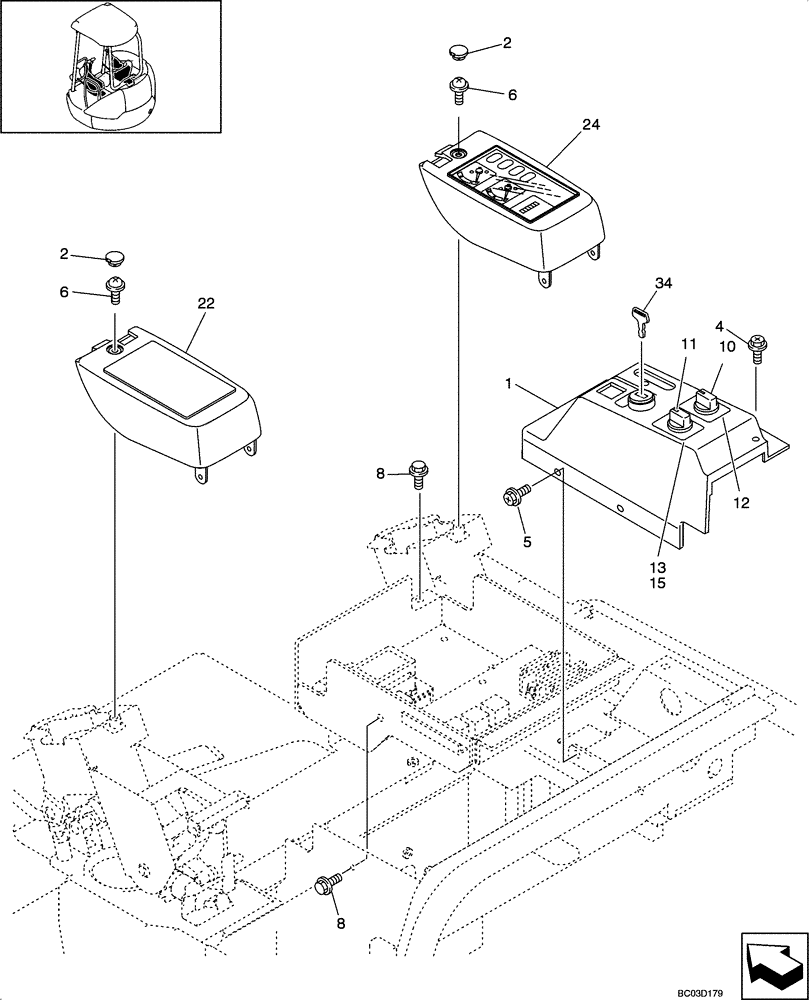

Запчасти Case CX25 (09-32[00]) - INSTRUMENT PANEL ASSY - CANOPY (09) - CHASSIS/ATTACHMENTS

1

PM17M01035D2

COVER

1шт.

2

PE17M01011D2

CAP

2шт.

4

PA41C01006D3

BOLT

2шт.

5

PA41C01006D2

BOLT

2шт.

6

ZM46C05016

BOLT,Phillip, M5 x 0.8 x 15mm

2шт.

8

ZM22C08020

BOLT

2шт.

10

PV24E01001P1

SWITCH ASSY

(Used for Working Light)

1шт.

11

PY50S00003P1

SWITCH

(Used for Heater, Attachment Mode Select)

1шт.

12

PM17M01029P1

DECAL

1шт.

13

PM17M01030P1

DECAL

1шт.

15

PH17M01011P1

LABEL

1шт.

22

PE17M01012D2

COVER

1шт.

24

PM17M00007F4

D PANEL

Right Hand See Figure 09 -36

1шт.

34

PM50S01001P1

SET OF 2 KEYS

KEY, LOCK See Fig 04-16(00) for Assembly

1шт.
